Operator protection equipment

SPARTAN HELMET · FILTER · VALVES — KITS FOR 1 TO 4 OPERATORS

Maximum protection and comfort for the blast operator

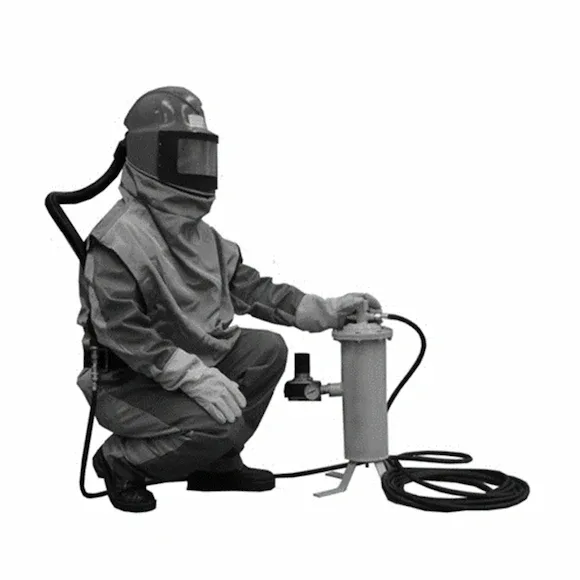

CYM blast operator protection equipment is designed to protect the operator against the three main risks of blast cleaning operations: rebound impact from projected abrasive, excessive noise levels and inhalation of dust and particles generated during the process. The Spartan helmet with cape features a rigid high-impact polyurethane shell with acoustic absorption, double-layer quick-replace lenses and an air distribution design that envelops the operator's head, face and neck. The system is completed by an operator filter, air flow regulator valves and optional air conditioning. Kits are available for 1, 2, 3 or 4 simultaneous operators.

Connect the clean air supply before starting the operation — never work without air flow to the helmet
Replace helmet lenses at the first sign of abrasion or loss of visibility
Replace the operator filter cartridge every 6 months or at any sign of odour — the filter does not retain carbon monoxide
Periodically inspect the condition of the anti-suffocation air supply tube and nylon belt

COMPONENTES

Standard kit and individual components available.

Nº	CODE	DESCRIPTION	1 OP	2 OP	3 OP	4 OP
1	CYT01503	Spartan Helmet and Cape	1	2	3	4
2	CYT01504	Anti-suffocation air supply tube	1	2	3	4
3	CYT01505	Belt with air flow regulator valve	1	2	3	4
4	CYT01513	Protective gloves	1	2	3	4
5	CYT01511	Operator filter (up to 4 operators)	1	1	1	1
6	CYT01512	20 m air hose section	1	2	3	4

Códigos de kit completo: CYT01514 (1 op.) · CYT01521 (2 op.) · CYT01517 (3 op.) · CYT01550 (4 op.)

Nº	CODE	DESCRIPTION
7	CYT08050	Air cooler — reduces incoming air temperature by up to 19°C
8	CYT01542	Hot/cold air conditioner — reduces by up to 15°C or increases by up to 30°C
9	CYT01519	Overalls
10	CYT08057	Leather apron

Optional items available separately — consult availability.

Alternative or complementary equipment

Blast nozzles

Long venturi

Tungsten and boron carbide — models #3 to #8, 50 mm coarse thread

Leer mas

Couplings

Nozzle, hose and blast pot

NHH, NHC and NTC in hard injected nylon — for nozzle, hose and blast pot.

Leer mas

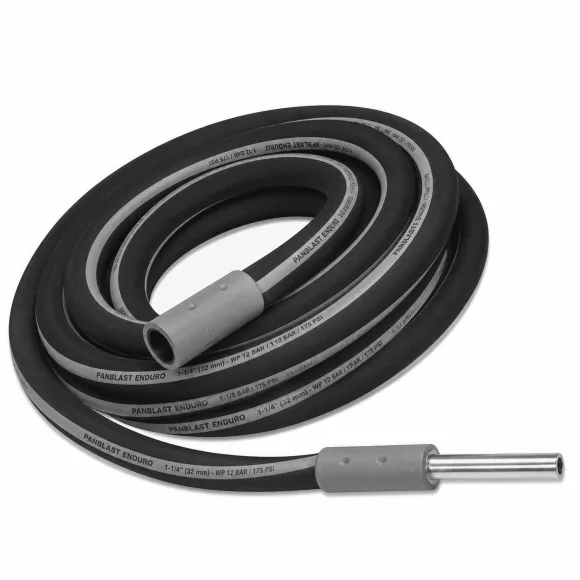

Hoses

Light and heavy wall

Blast hoses in virgin rubber with static dissipator — light and heavy wall, 5/10/20 m lengths. Working pressure 150 psi

Leer mas

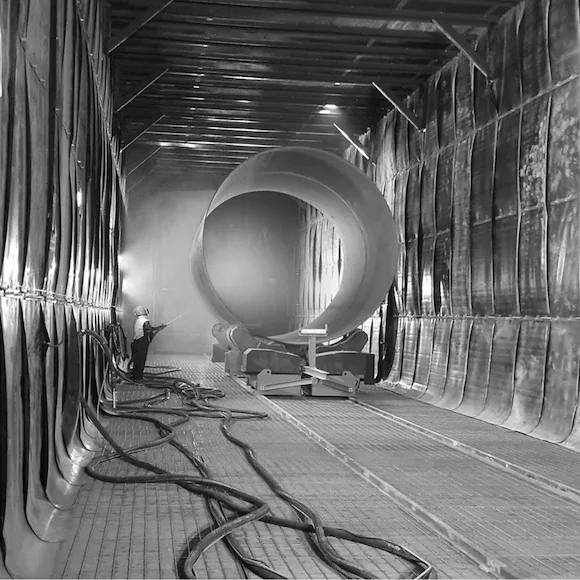

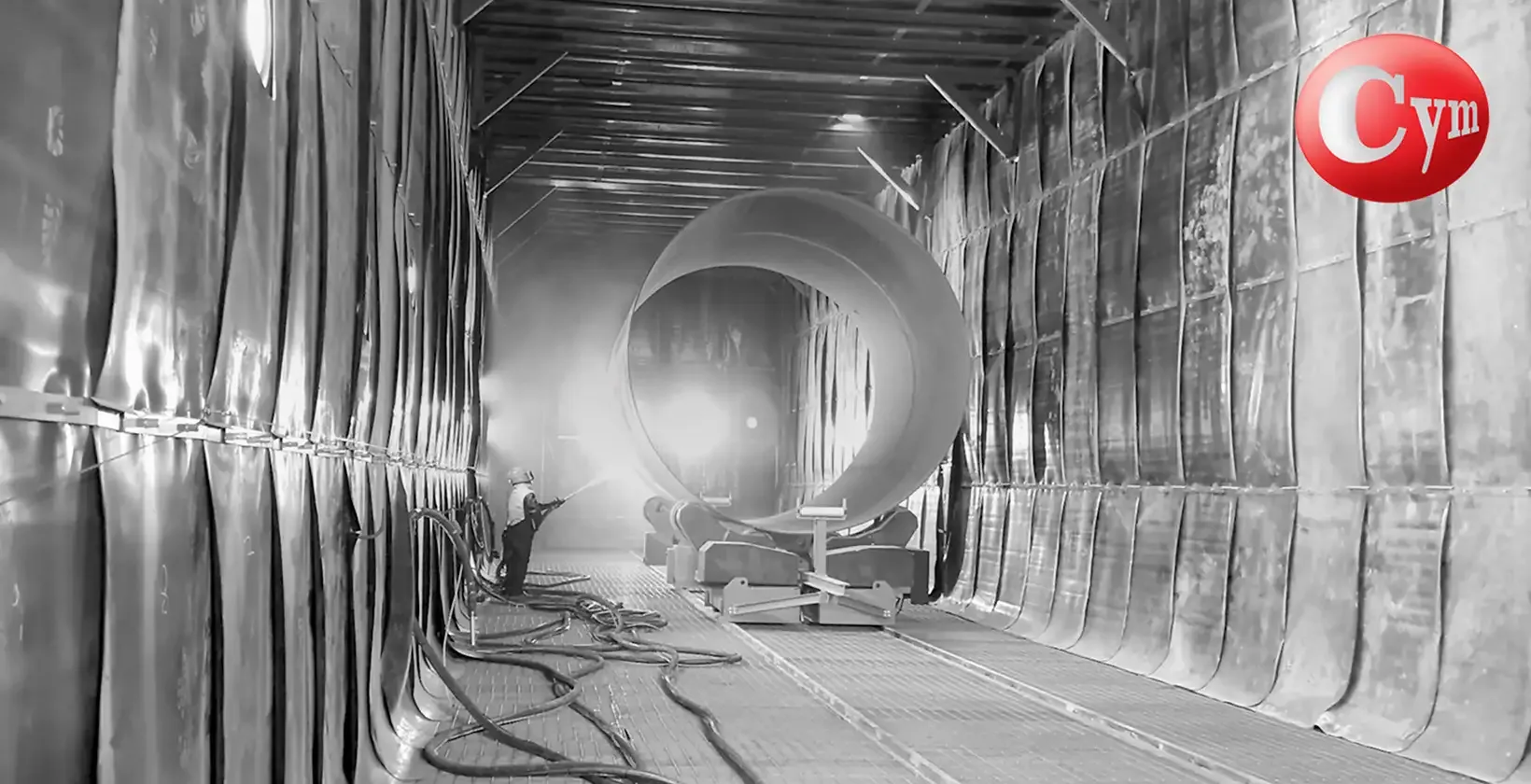

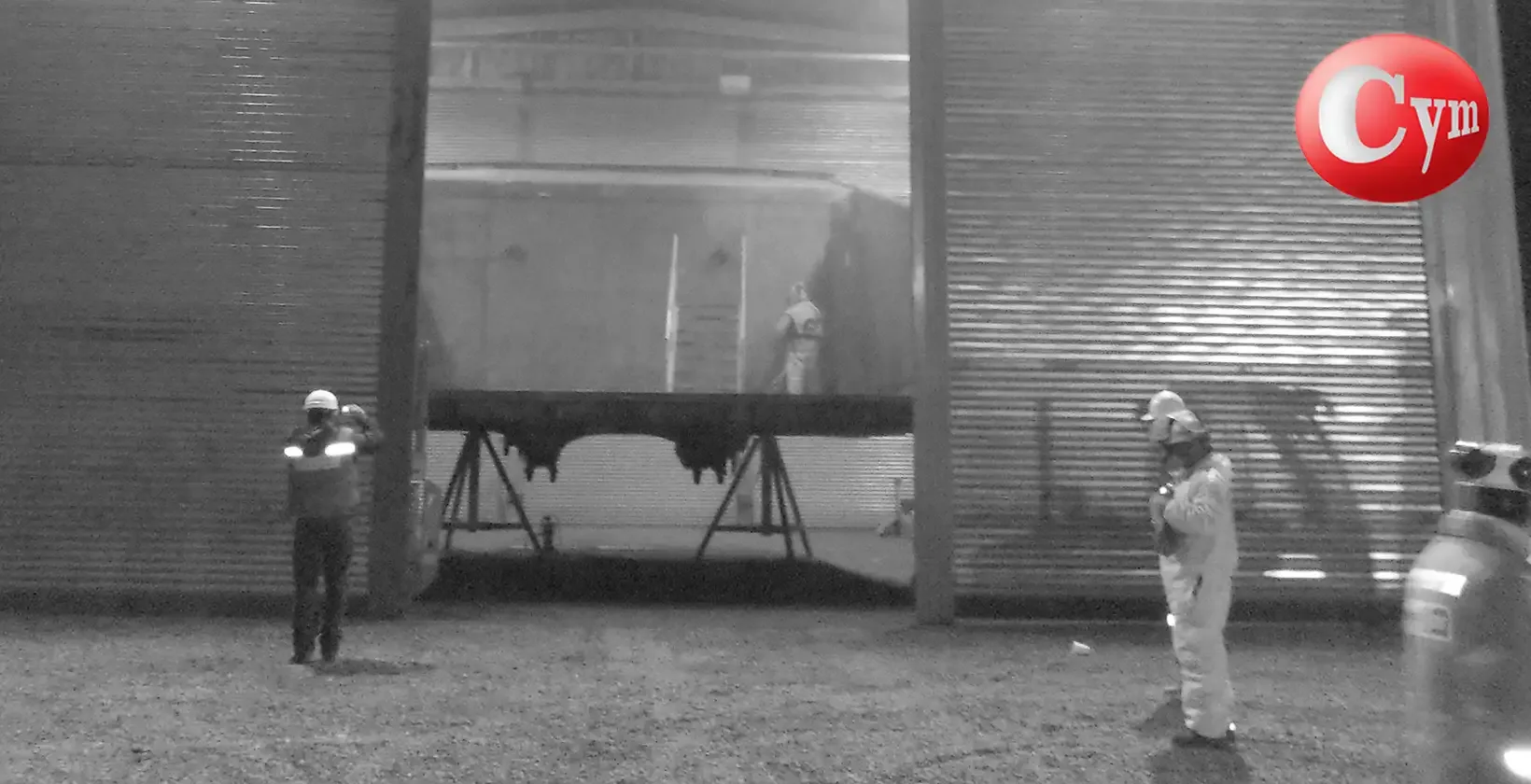

Installations

Equipment in operation

Videos

Equipment in action

Video institucional CYM Materiales

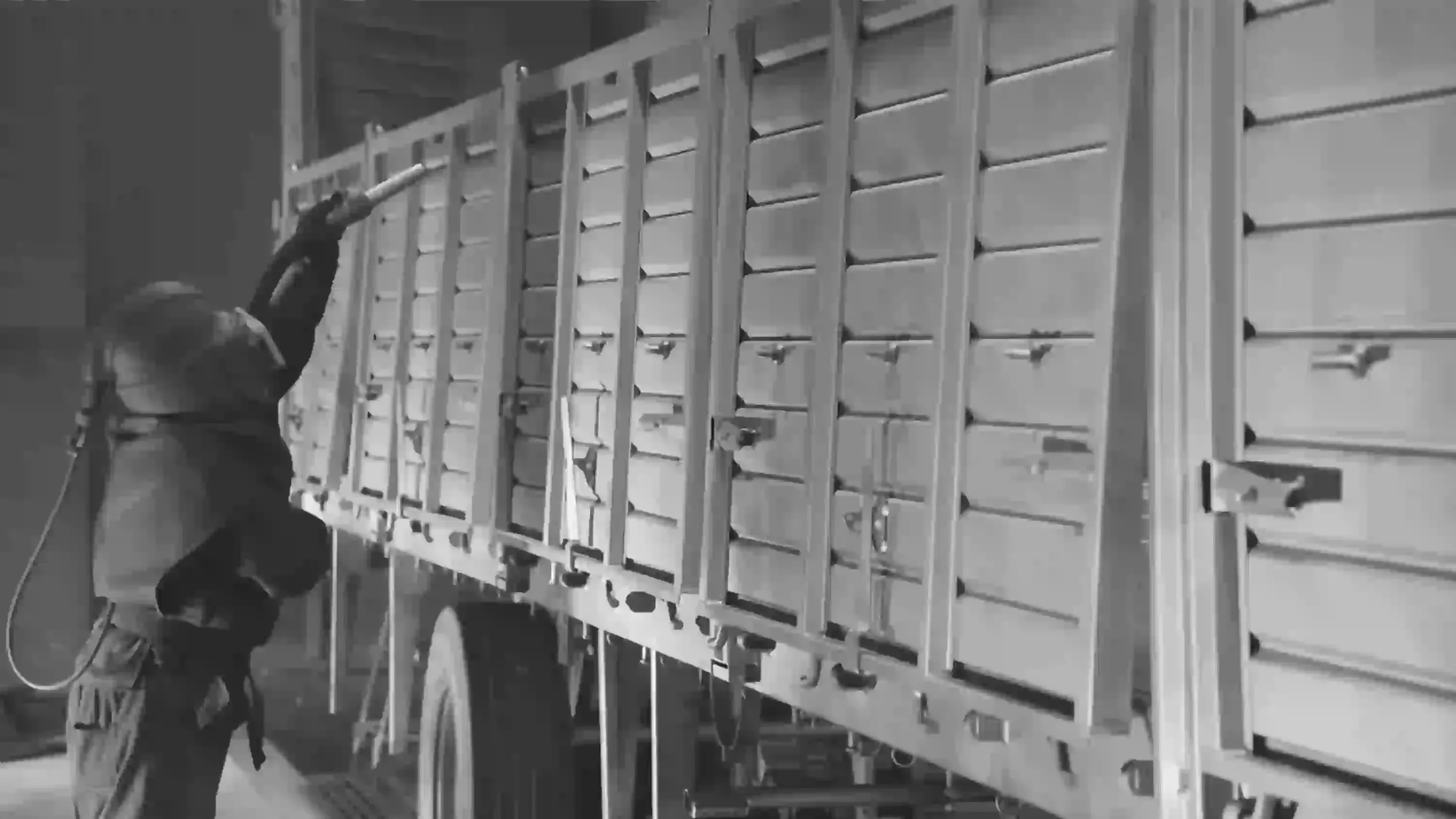

Cuarto granallado - camiones

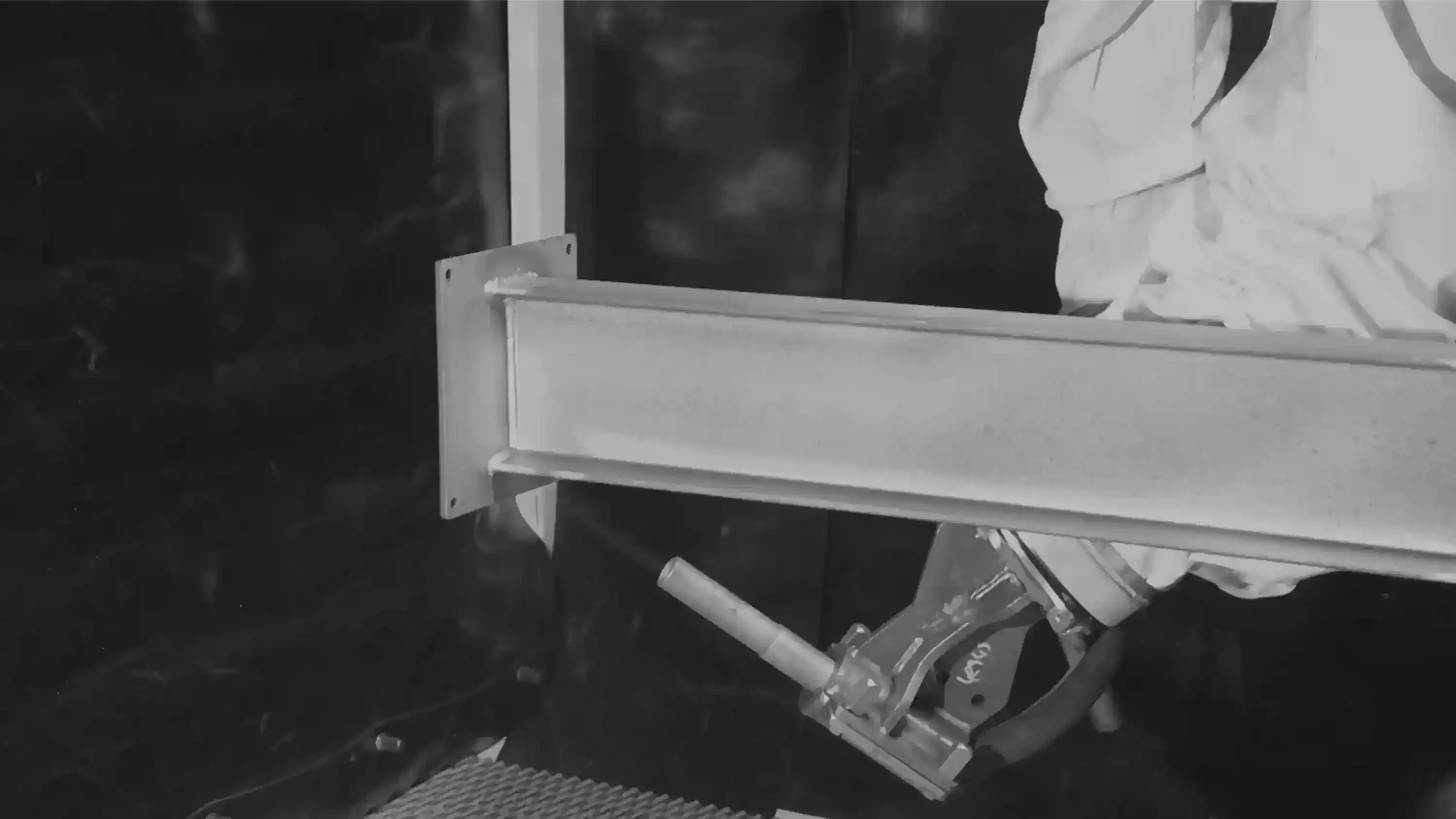

Cuarto Robot - Fadea

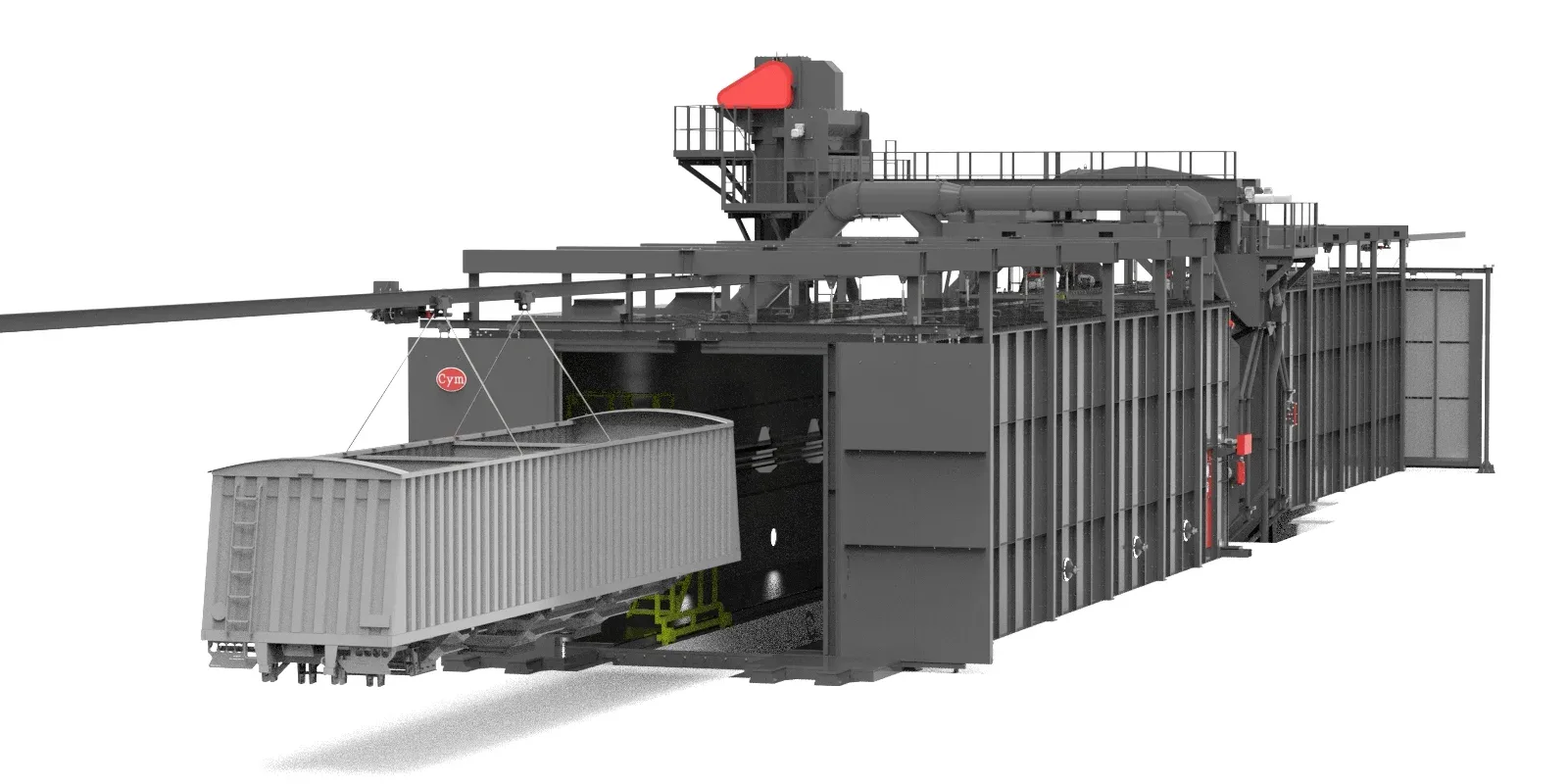

Special Projects
