Straight or miter cut? What changes on the saw

The straight cut separates the part at 90° and serves to cut to length. The miter cut is made at an angle —single, on one axis, or compound, on two— and is what allows preparing the ends for a welded or bolted joint with no later work. In structural preparation, the miter is not an extra: it is most of the real work.

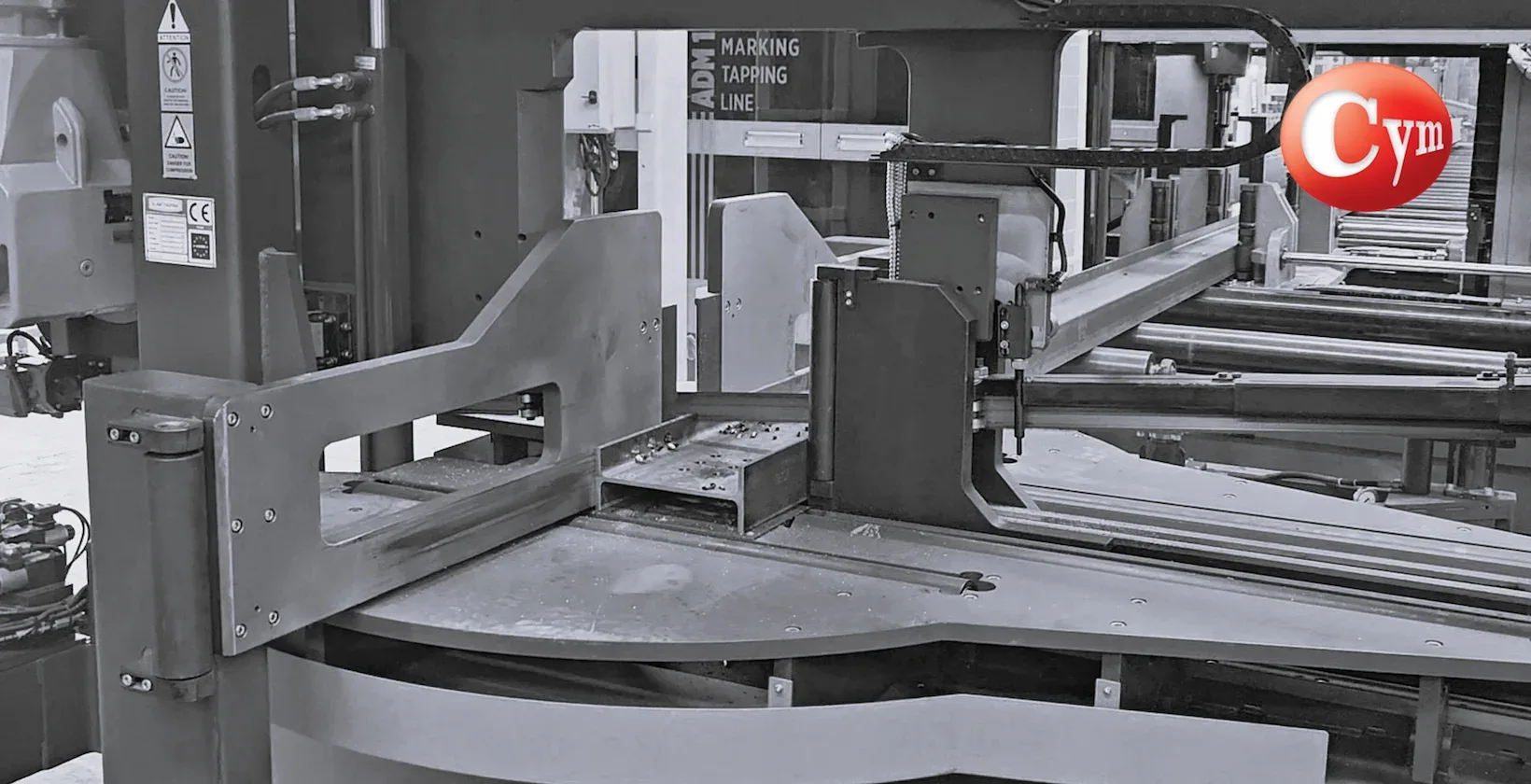

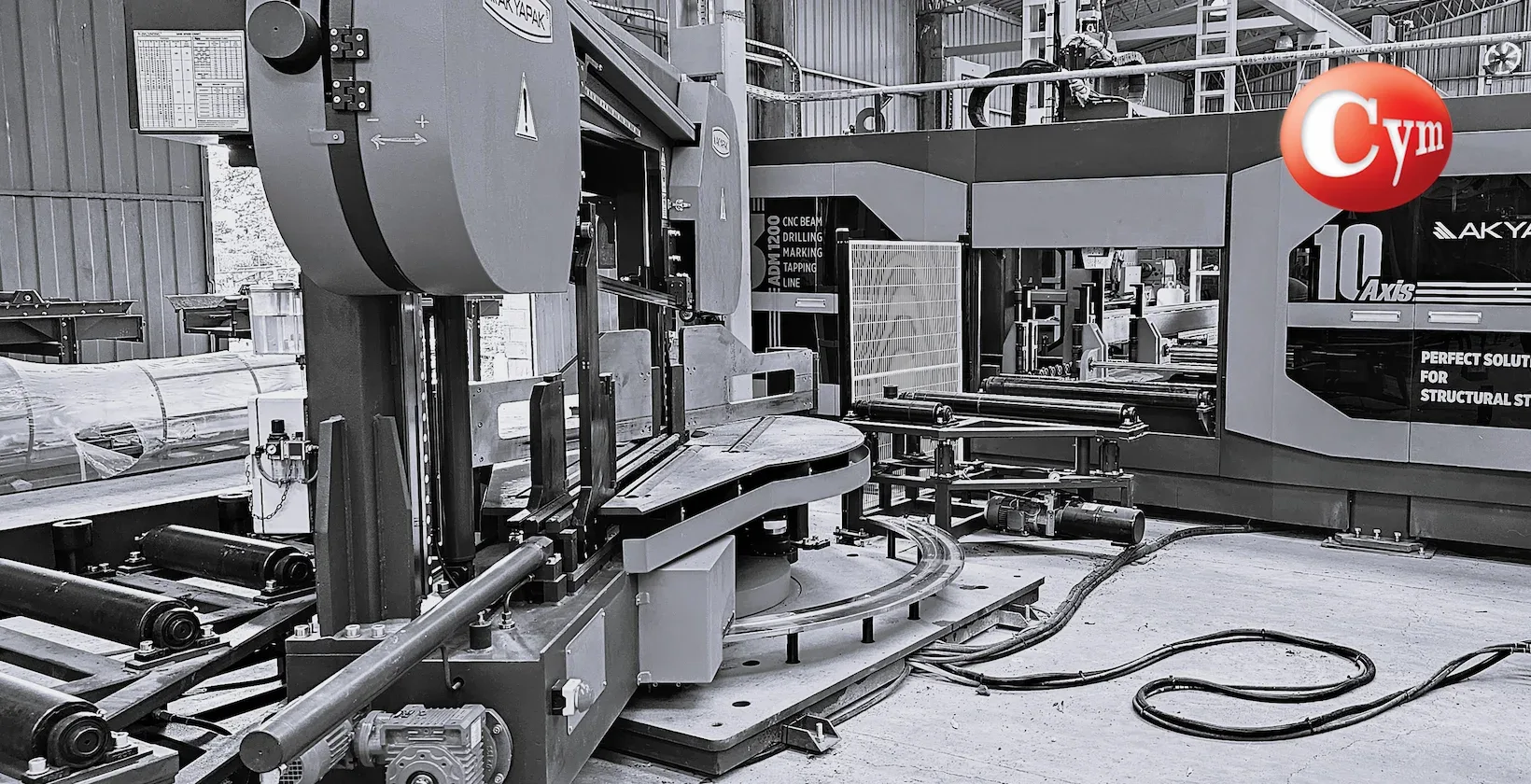

A saw with a mitering head swivels to cut at 90° and at an angle without moving the part. That avoids repositioning and re-clamping the profile for each angle, which reduces time and —more importantly— improves joint accuracy, because the angle is set by the machine and not by the operator. A saw that only cuts straight forces miters to be prepared on another machine or by hand, with more handling and less precision.

When choosing the saw it is worth defining the range of angles needed and whether the miter is single or compound. The more varied the joint angles, the more a wide mitering head is justified; for almost always straight cuts, a simpler saw is enough. How this combines with section, material and volume is developed in the article on how to specify a cutting saw.

The difference between straight and miter is not a detail: it defines whether the saw prepares the joints on its own or an extra step is needed. To prepare structural steel, a mitering head with the right range of angles is what turns the saw into a preparation machine and not just a cut-to-length one. Defining the angles needed is as important as the maximum section.
