CNC Band saw

CNC band saws for structural steel

Cutting profiles, tubes and bars at 90° and at miters

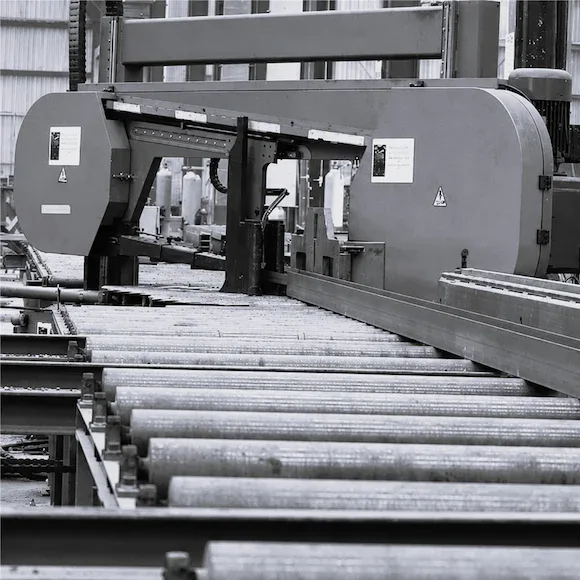

The CNC band saws supplied by CYM Materiales cut steel profiles, tubes and bars at 90° and at miters with high speed and precision. Manufactured by AKyapak (AST series), they feature a rigid frame structure that enables fully automatic cutting with precision. The head rotates to the required position by CNC servo motor, ensuring angle repeatability in series production.

They can be installed in tandem with a beam drilling line or as a standalone cutting line. The automatic hydraulic blade tensioning and the motor-driven swarf brush keep the blade clean at all times, reducing cutting failures and extending blade life.

MAIN FEATURES

• Rigid steel frame: automatic cutting at 90° and at miters with high precision

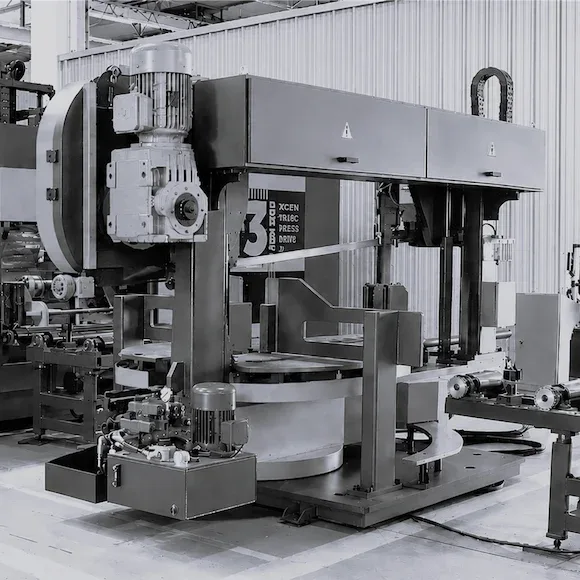

• CNC servo-driven mitering head: rotates to position without manual intervention

• Automatic hydraulic blade tensioning for consistent cutting

• Motor-driven swarf brush: keeps the blade clean at all times

• MQL lubrication system: minimal lubricant, reduced environmental impact

• Integrated swarf extraction and conveyor with hydraulic drive

• Cutting speed adjustable to suit the material

APPLICATIONS

Cutting processes and uses

CNC band saws are used in the fabrication of steel structures, bridges, shipyards and construction in general for the precise cutting of profiles and bars to length.

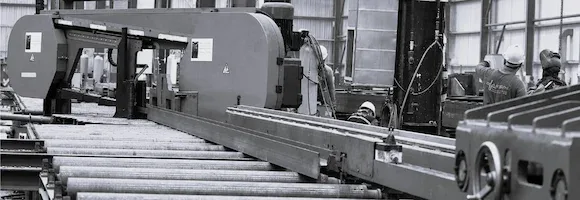

STANDALONE LINE

Independent operation as a cutting saw.
Cutting of profiles, tubes and bars to length from stock
Miter cuts up to 60° right and 45° left
Rapid approach with automatic feed reduction on material contact
Material fed in straight position for 45° cuts to both sides
Integrated swarf conveyor and discharge system

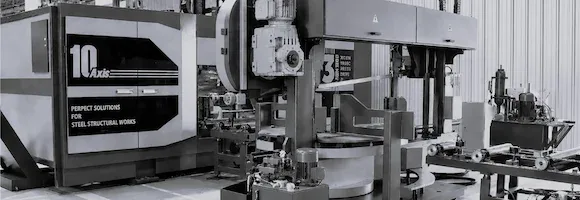

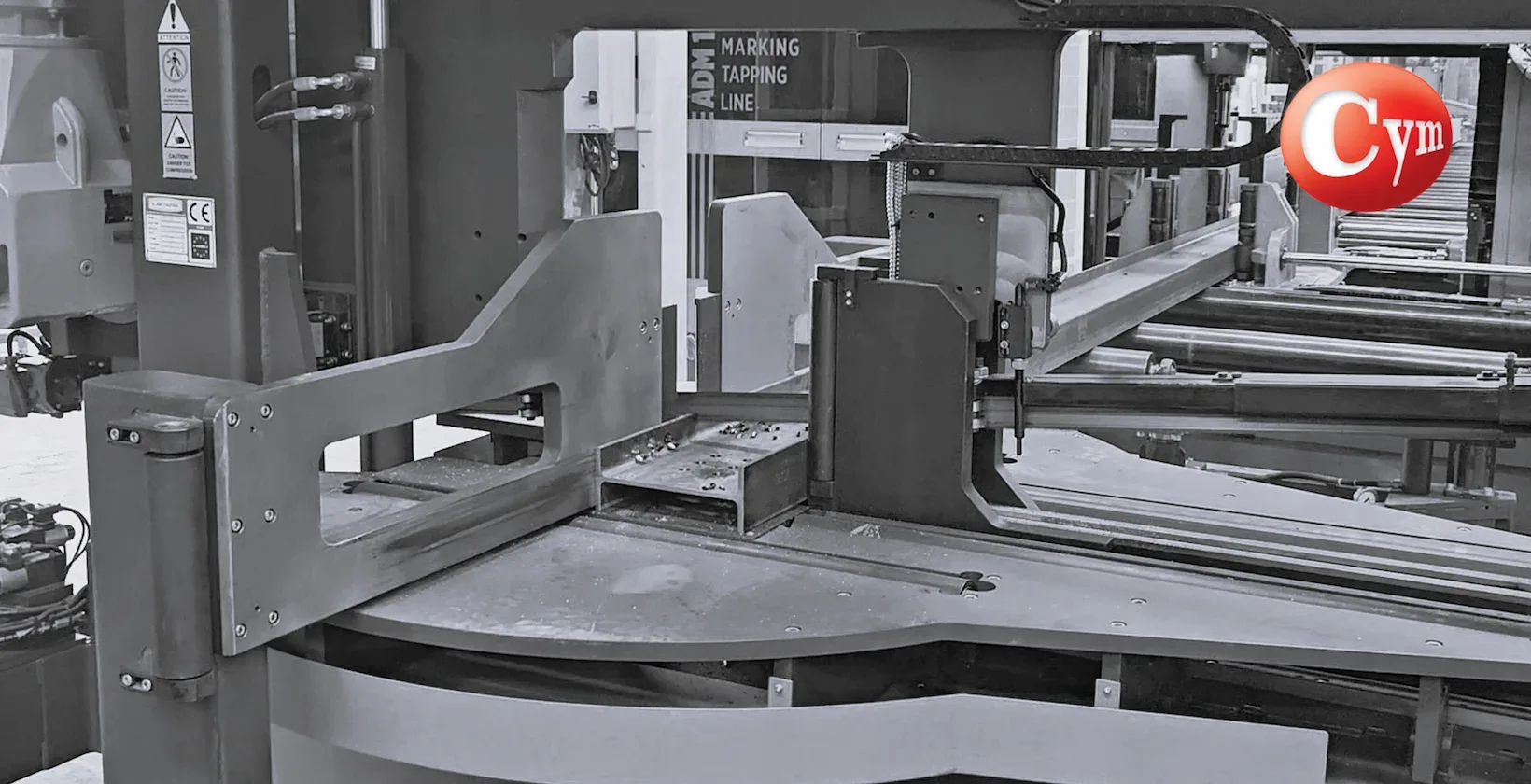

IN-LINE WITH DRILLING

Integrated in tandem with a beam drilling line.
Cutting and drilling of profiles in a single production line
Automatic cutting to length of steel structures
CNC synchronization with the ADM drilling line
Infeed and outfeed roller conveyors
At the end of the cut, rollers on both sides rise 0.4° to facilitate table rotation

Serie AST

What do you need to blast? Find your machine

The choice between the two models depends mainly on the required miter angle and the level of feed control. The AST 1300-600 incorporates an upper clamping cylinder and electronically controlled feed, making it the choice for higher-precision and higher-volume work.

Selection criterion	AST 1200-500	AST 1300-600
Cutting capacity (width)	up to 1,250 mm (49⅛")	up to 1,300 mm (51⅛")
Miter angle right / left	45° / 60°	60° / 60°
Upper clamping cylinder	–	✓
Feed control	Hydraulic valve control	Electronic control
Total power	24 HP	24 HP
Integrable with drilling line	✓	✓

Alternative or complementary equipment

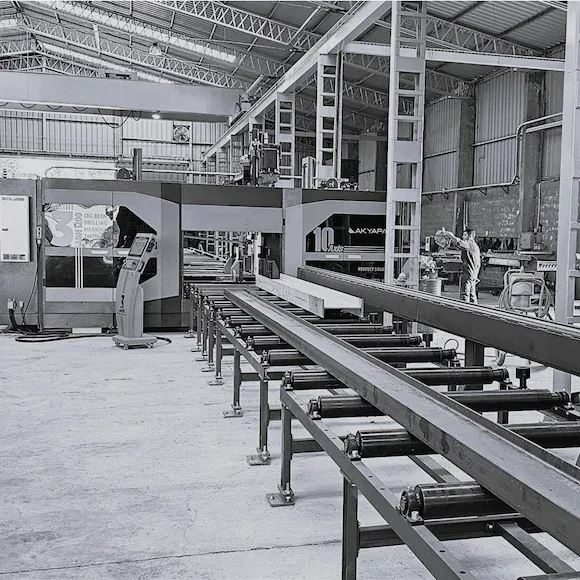

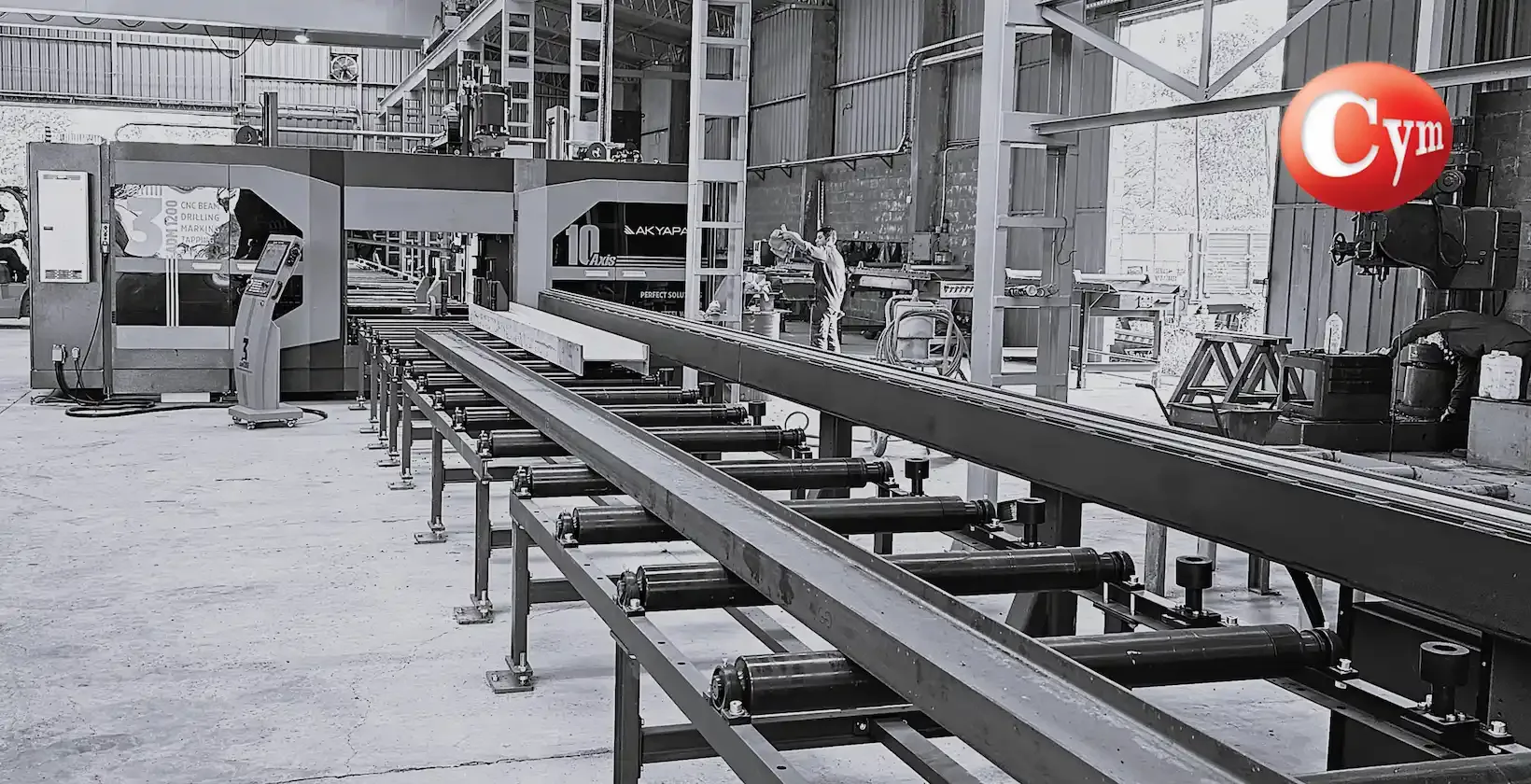

3ADM - METEOR 1200 LINE

CNC beam drilling lines

CNC beam drilling lines for H, I and U profiles: one spindle for smaller shops or three spindles with sub-axis for maximum output.

Leer mas

PER, EST & CH LINES

Shot blast machine for profiles and welded structures

Automatic shot blasting machines for profiles, tubes, spools and welded structures.

Leer mas

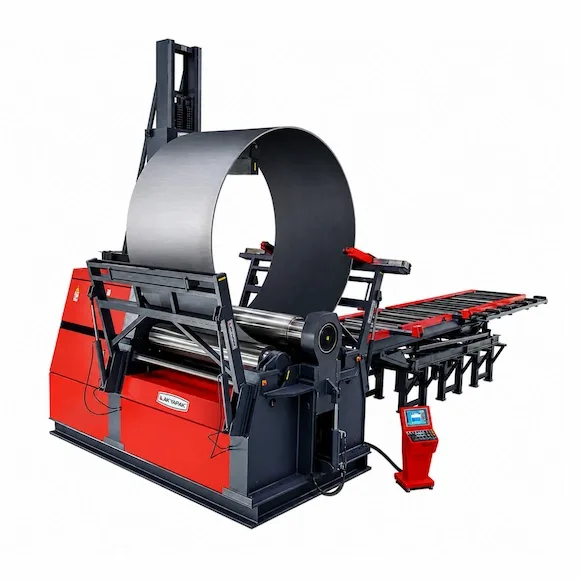

3-Roll and 4-Roll

CNC plate rolling machine

For bending shells, cylinders and cones in steel, 2 to 200 mm thick. Three-roll and four-roll versions with prebending.

Leer mas

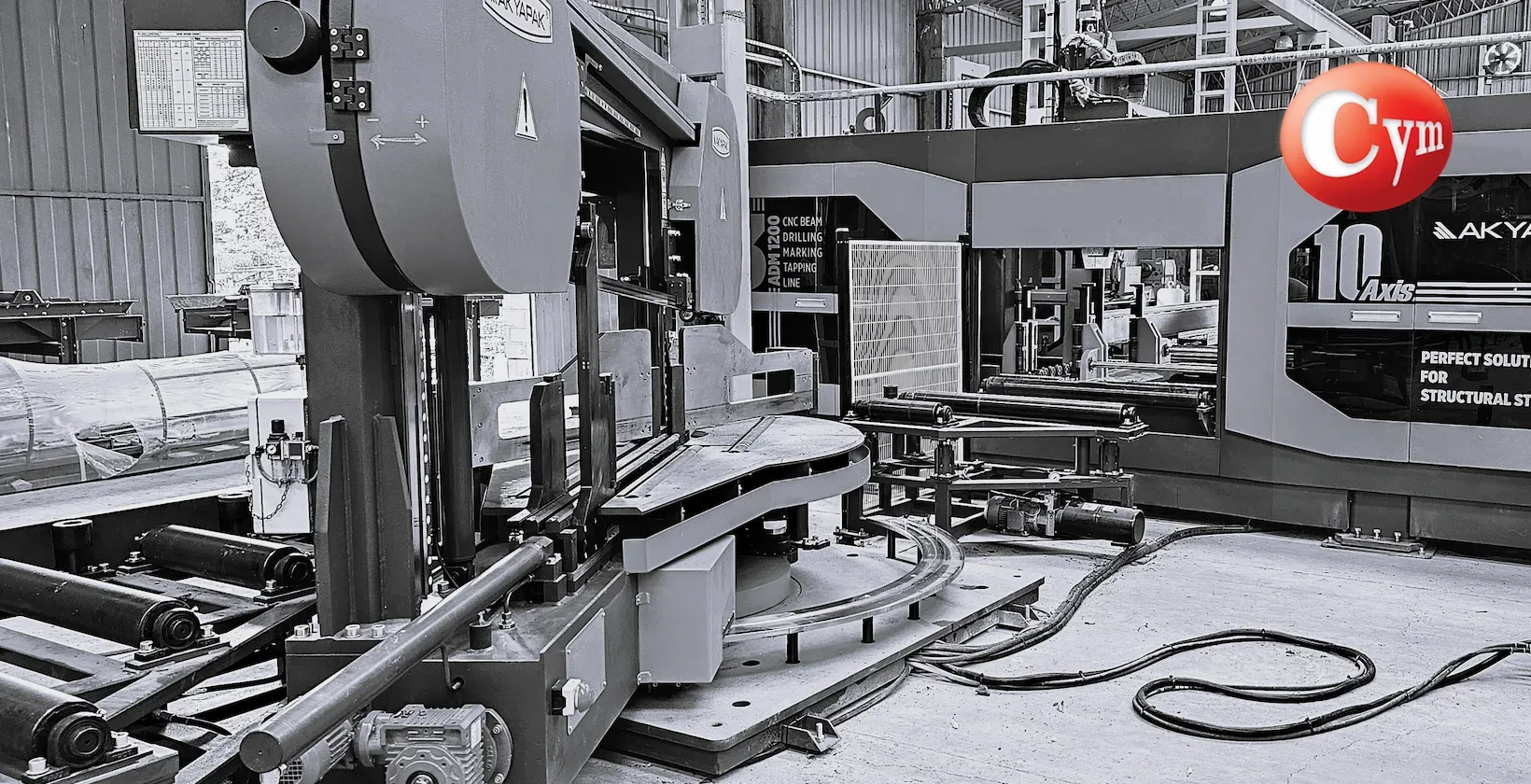

Installations
