CNC Beam drilling lines
3ADM - METEOR LINES
Drilling, marking and milling of structural steel profiles
The CNC beam drilling lines supplied by CYM Materiales drill H, I, U profiles, angles, tubes and flat bars with diameters from 10 to 40 mm, and up to 50 mm with U-type drill bits. Manufactured by AKyapak under the AKDRILL brand, they run on servo motors with Mitsubishi or Siemens CNC control, with spindle speed adjustable between 50 and 3,000 rpm.
The line is selected based on production volume, part complexity and available floor space: from a compact single-spindle line for mid-size fabrication shops to a three-spindle line with a 500 mm sub-axis for industrial-scale structural steel production.
APPLICATIONS
Drilling processes and uses
CNC drilling lines are used in the fabrication of steel structures, bridges, shipyards, towers and industrial vessels across the construction industry.

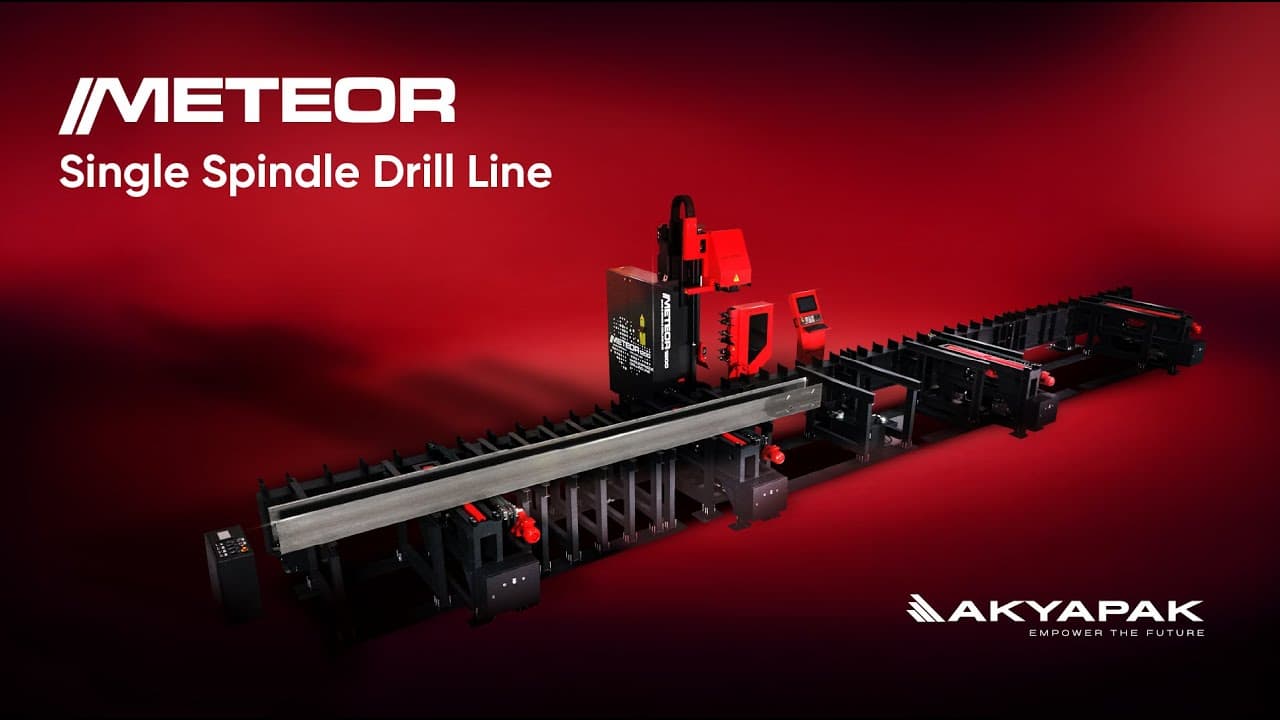

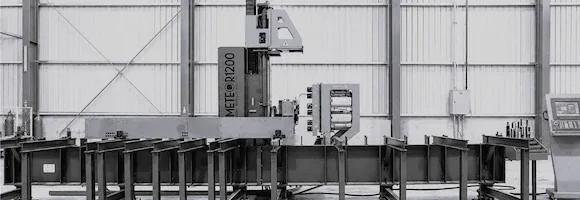

SINGLE SPINDLE — METEOR 1200
- Compact solution for fast and precise drilling.
- Processes H, I, U profiles, angles, tubes, flat bars and welded trusses
- Reduced floor space: ideal for mid-size fabrication shops
- 8 movement axes for high versatility
- ATC: automatic tool changer with up to 6 tools
- Automatic measurement of cross-sections

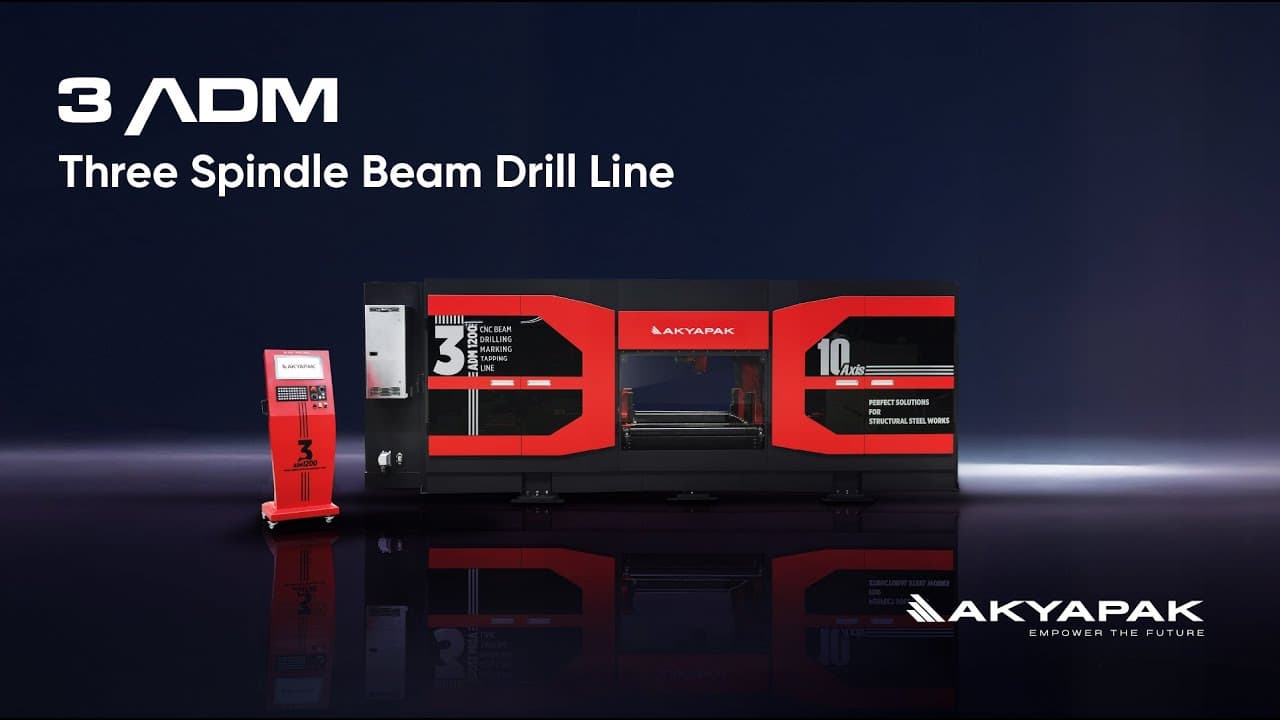

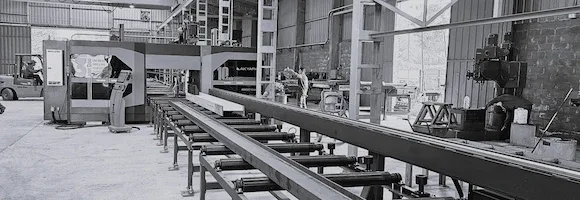

THREE SPINDLES — 3ADM 7 AND 10 AXES

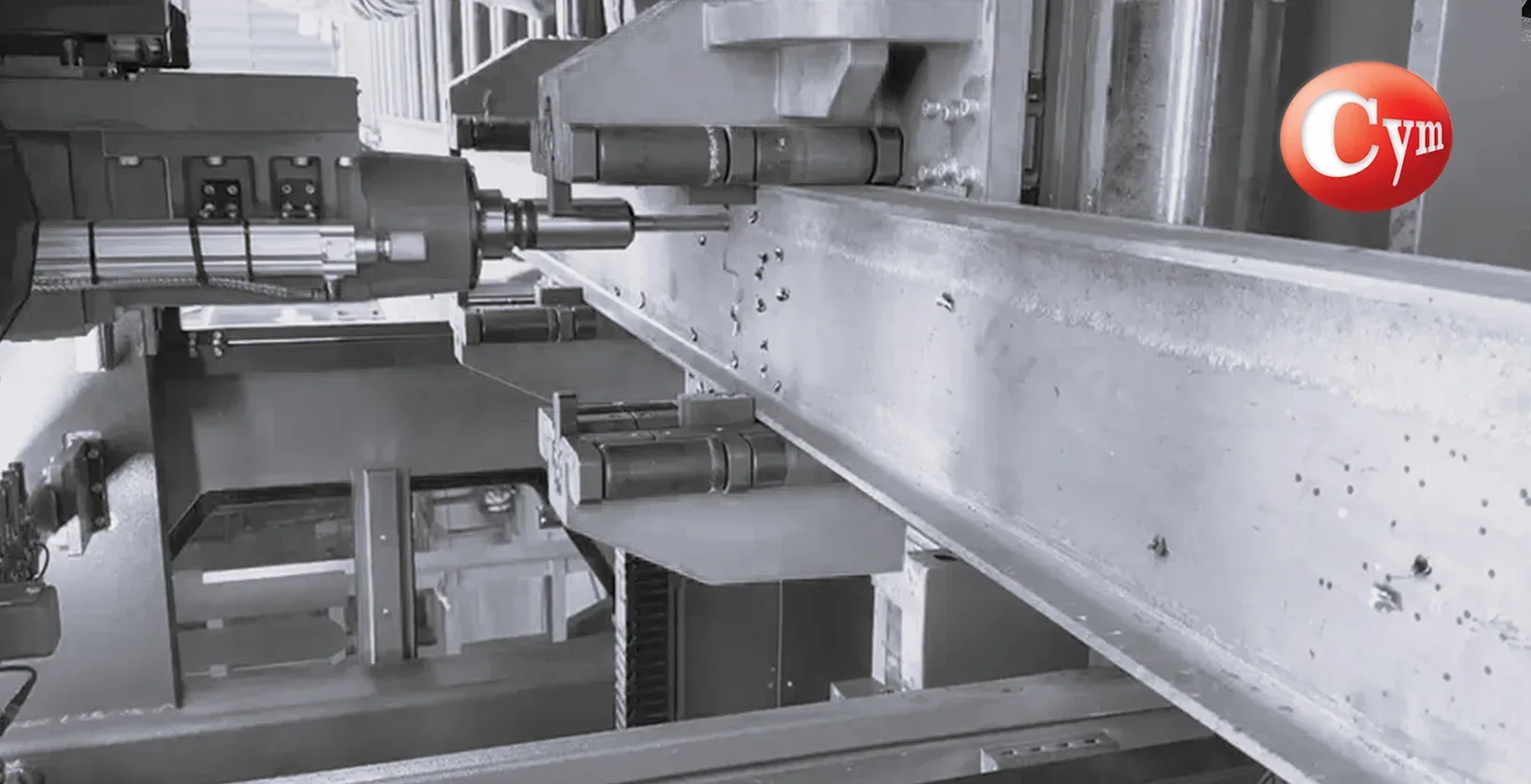

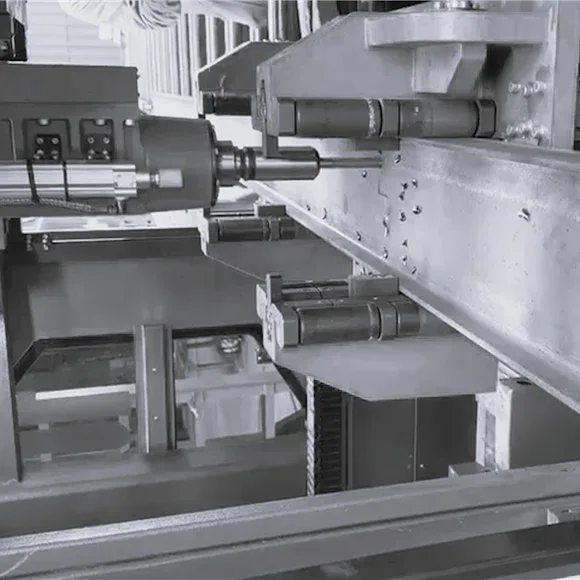

- Three independent drilling units machining all three profile faces simultaneously.
- Drilling, marking, tapping and milling integrated in a single pass
- ATC: automatic tool changer with 7 tools per spindle
- High positioning tolerance and repeatability
- 3ADM 7 axes: beam advances by CNC between drilling operations
- 3ADM 10 axes: 500 mm sub-axis — spindle moves without repositioning the beam, cuts cycle time by 50%

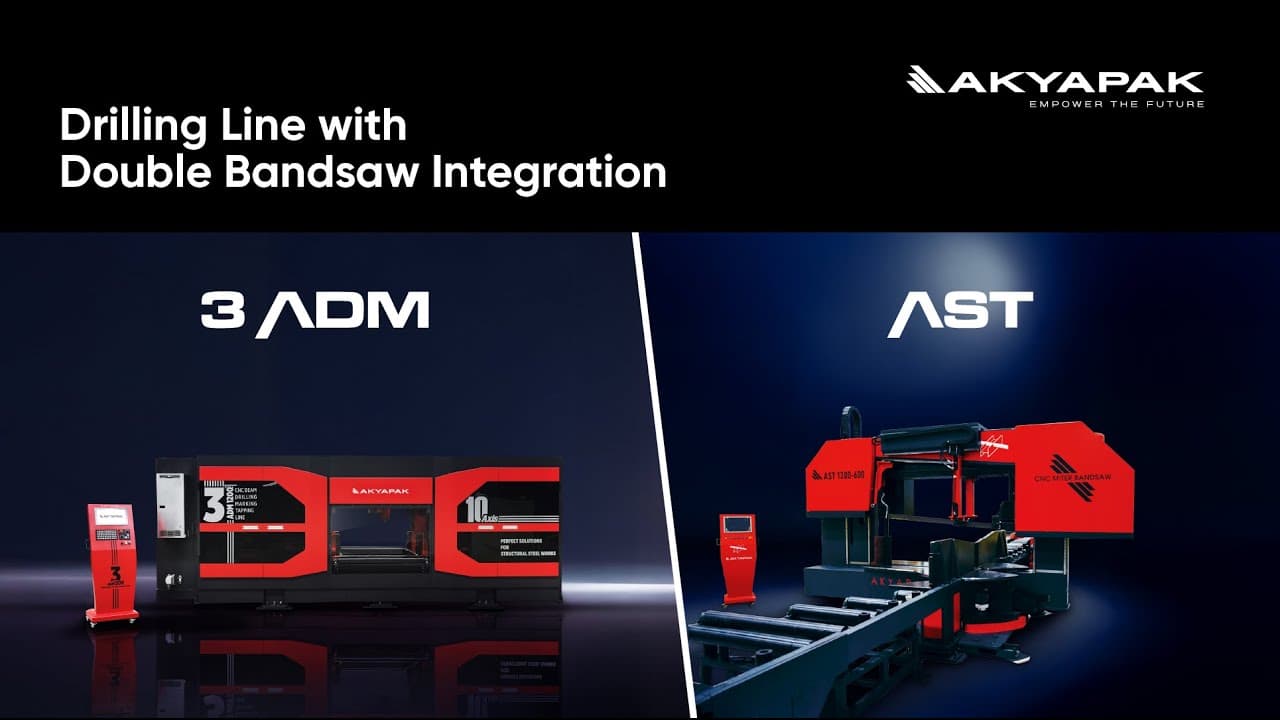

- Integrable with CNC band saw as a complete processing line
SERIE ADM (AKDRILL)
What do you need to blast? Find your machine
Selection depends on production volume, operation complexity and available floor space.
| Selection criterion | Meteor 1200 - SINGLE SPINDLE | 3ADM · 7 axes | 3ADM · 10 axes |
|---|---|---|---|
| Spindles | 1 | 3 | 3 |
| Movement axes | 8 | 7 | 10 |
| 500 mm sub-axis (no beam repositioning) | – | – | ✓ |
| Horizontal displacement | Spindle 350 mm | Beam (CNC) | Spindle 500 mm |
| Machines 3 faces simultaneously | – | ✓ | ✓ |
| ATC tools per spindle | 6 | 7 (total 17) | 7 (total 21) |
| Marking + tapping + milling integrated | – | ✓ | ✓ |
| Floor space required | Small | Medium | Larger |
| Production volume | Medium | High | Maximum |
| Integrable with CNC band saw | – | ✓ | ✓ |
Related products
Alternative or complementary equipment
PER, EST & CH LINES
Shot blast machine for profiles and welded structures
Automatic shot blasting machines for profiles, tubes, spools and welded structures.
Leer mas
AST line

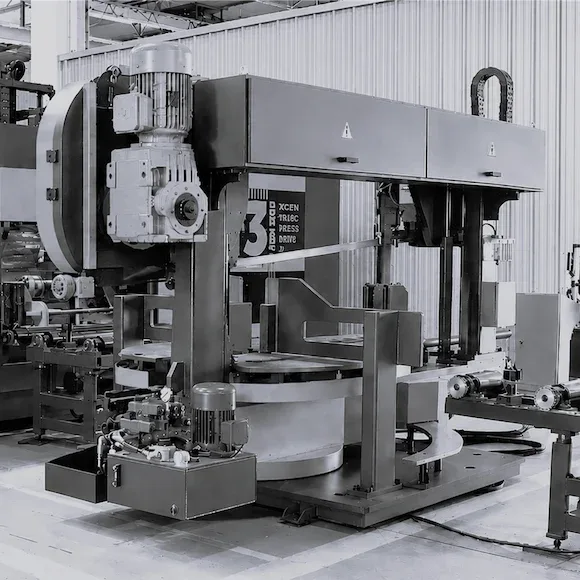

CNC band saws
