CNC TUBE BENDER

Tube bending in simple and complex shapes

CNC tube bending machines for steel, stainless and aluminium

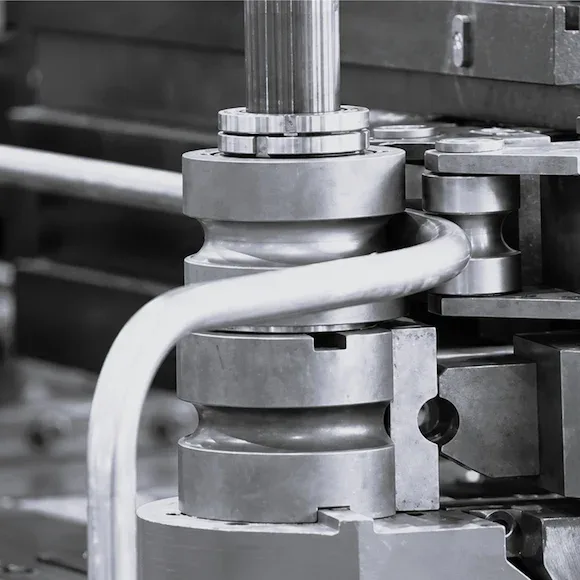

The CNC tube bending machines supplied by CYM Materiales bend steel, stainless steel, aluminium and similar materials into simple and complex shapes, with automatic multi-step bending. Manufactured by AKyapak (ABM series), they are available with and without mandrel, with servo control and YBC-mode programming, for tube diameters from 38 to 76 mm.

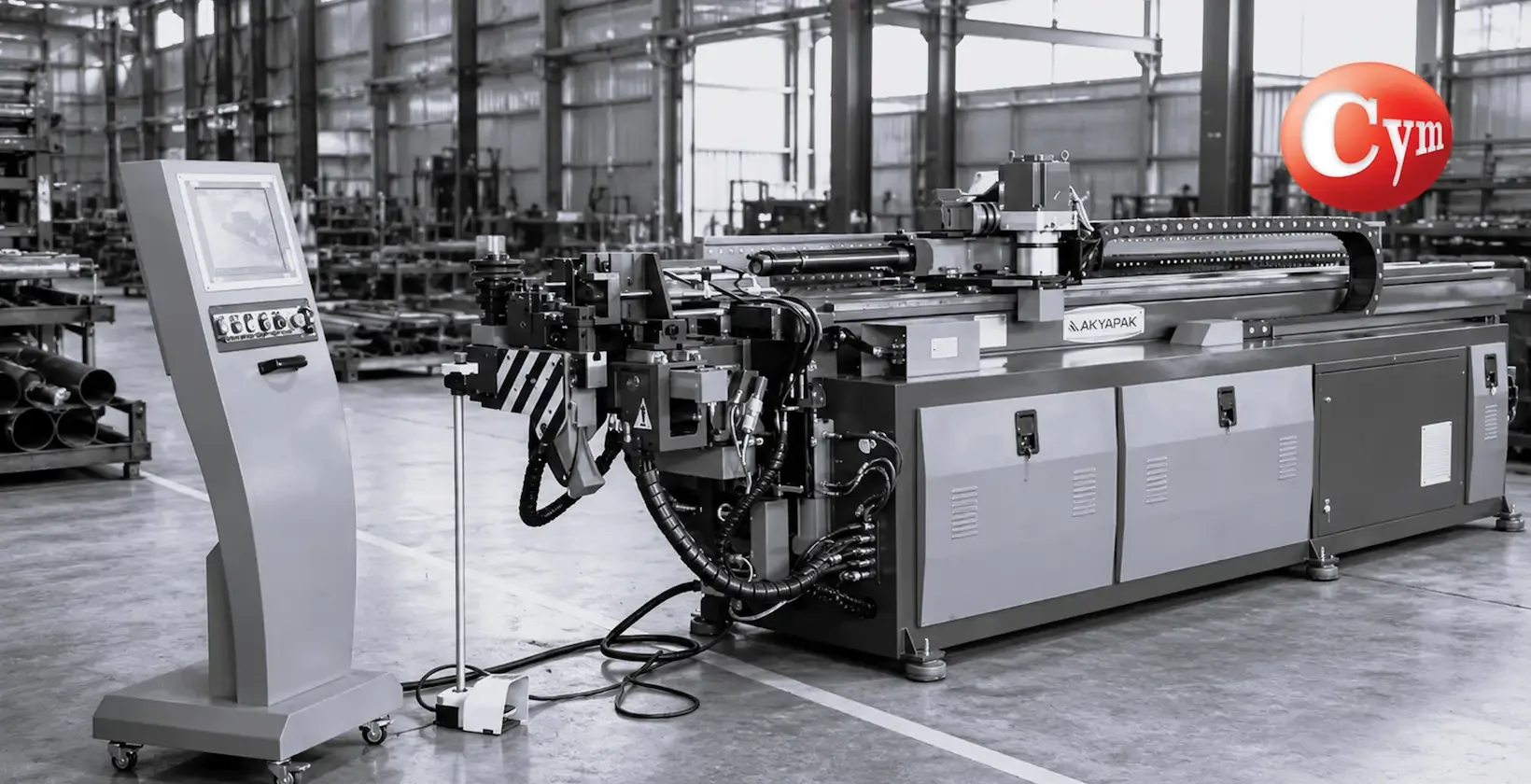

The operator only needs to load the tube and select the program: the machine runs the full bending sequence automatically, cutting idle time and reducing costs in both series production and single-piece work. The 15" touchscreen allows paths to be programmed with 3D preview before starting production.

APPLICATIONS

Bending processes and uses

CNC tube bending machines are used across a wide range of industries that require precisely and repeatably bent tubes.

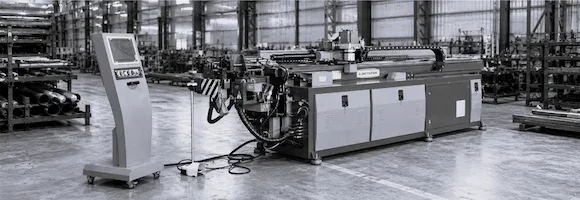

SIMPLE SHAPES AND SERIES PRODUCTION

Bending of a single bend or repetitive sequences at high throughput.
Automotive: exhaust pipes, vehicle frames and structural parts
Furniture: legs, backrests and tubular structures
Heating and cooling: coils and fluid circuits
Insulation: supports and holding structures
The operator loads the tube and selects the program — the machine does the rest

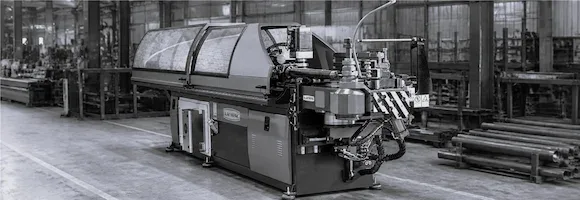

COMPLEX SHAPES IN A SINGLE PART

Multiple bends at different angles and planes, without repositioning the tube.
Roll bars and safety bars for vehicles
Tubular assemblies for industry and construction
Curved structures with combined plane changes and angles
Parts with spirals in specific diameters
Significant reduction in operations and cycle times

ABM Serie

What do you need to blast? Find your machine

The model is selected primarily based on tube diameter, the required control level and production volume.

Criterion	ABM 38 CNC	ABM 50 CNC	ABM 76 CNC-1	ABM 76 CNC-3
Max. tube diameter	38 mm	50 mm	76 mm	76 mm
Dies	2	3	1	1
Bending system	Servo	Servo	Hydraulic + servo	Servo
Bending speed	áx. 1.000°/s	áx. 1.000°/s	100°/s	máx. 1.000°/s
With / without mandrel	✓	✓	✓	✓
3D preview	✓	✓	✓	✓
YBC programming	✓	✓	✓	✓
Total power	5,5 kW	7,5 kW	7,5 kW	7,5 kW
Best for	Small tubes, high throughput	Medium diameter, versatility	Large Ø, lower investment	Large Ø, max. productivity

For tubes up to 25 mm with multiple dies in a single operation, see the ABM E-25 model (fully electric, multi-stack, all servo axes).

Alternative or complementary equipment

APK Line

Section bending machines

For angles, tubes, H/I beams and channels in structural steel. From 0.75 kW to 160 kW in three capacity ranges.

Leer mas

AS - ASM - AHK - AHV LINE

Plate rolling machine - 3 roll

For bending cylinders, shells and cones in steel. Pre-bending of ends and lower initial investment.

Leer mas

AHS LINE

4-Roll CNC Plate Rolling

Pre-bends both ends in one pass and pinches the plate for maximum precision and production volume.

Leer mas

Installations

Equipment in operation

Videos

Equipment in action

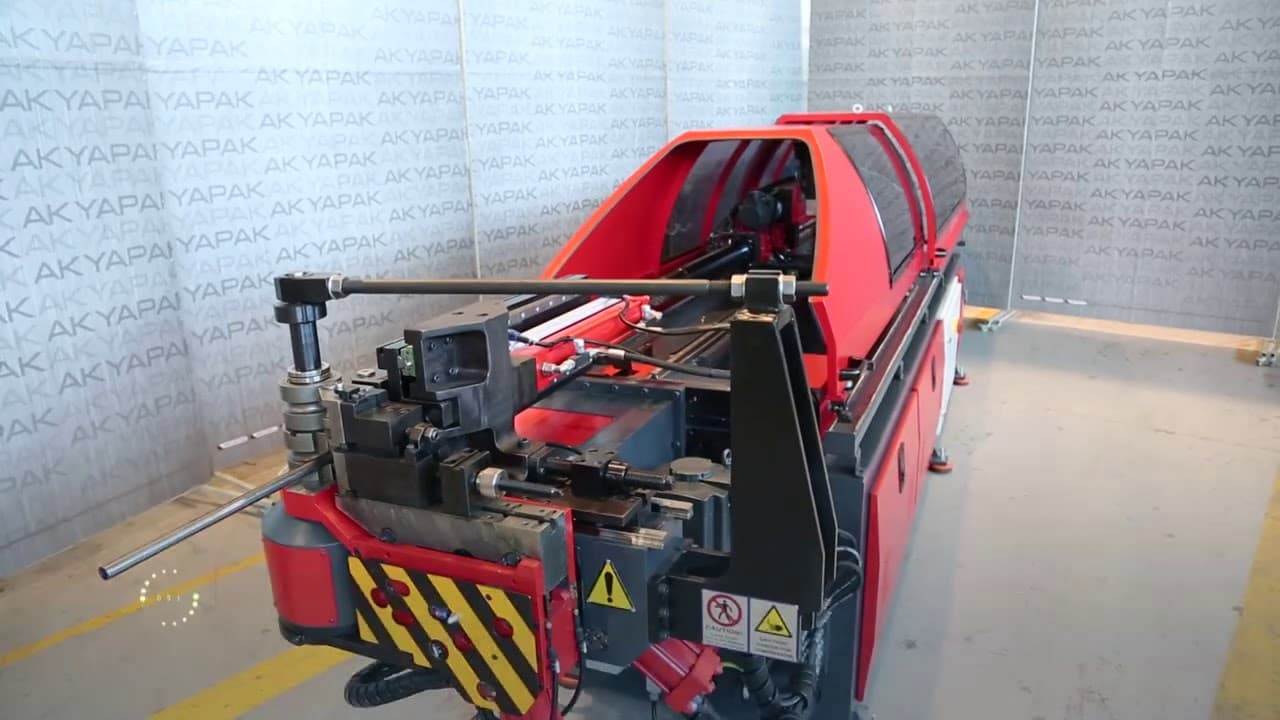

ABM 50

ABM 38

Special Projects

Can't find the equipment you need?

CYM Materiales develops it.

Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
