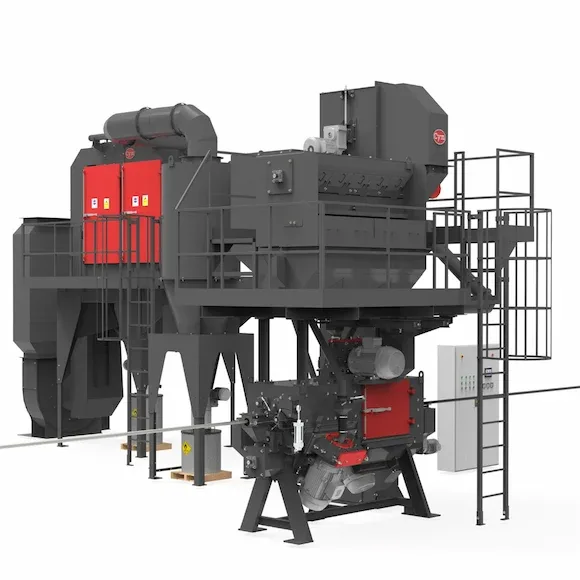

Continuous bar and wire shot blasting machine
LINE BAR
1 to 4 blast wheels, up to 250 m/min, integrable into wire drawing lines
CYM Materiales continuous shot blast machine for the mechanical descaling of wire, bars and steel billets. The BAR-1, BAR-2, BAR-3 and BAR-4 models feature 1 to 4 centrifugal blast wheels and abrasive concentrator deflectors with three position adjustment options — fixed, manual or pneumatic — ensuring precise coverage of the processed material. The compact design allows direct insertion into existing wire drawing lines with decoilers and straighteners. No acids, no effluents, no treatment plants.
- BAR-1, BAR-2, BAR-3 and BAR-4 models with 1 to 4 centrifugal blast wheels from 10 to 60 HP.
- Abrasive concentrator deflectors with fixed, manual or pneumatic position adjustment for precise coverage.
- Processing of a single wire or multiple simultaneous wires at speeds up to 250 m/min.
- Suitable for wire, bars and billets — descaling prior to wire drawing or crack detection inspection.

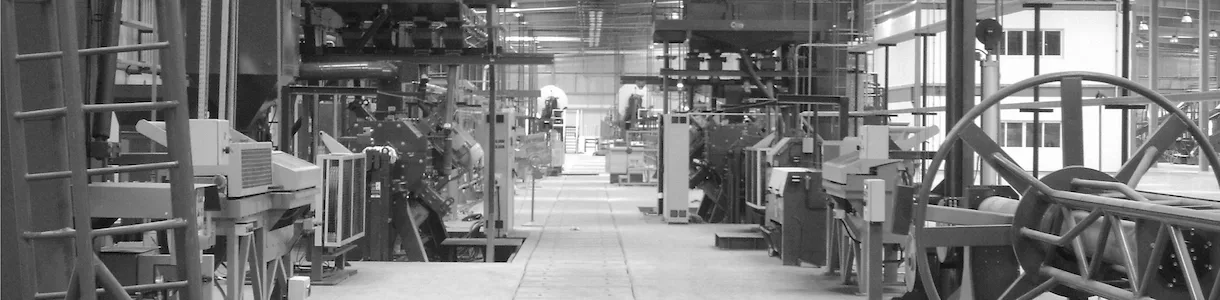

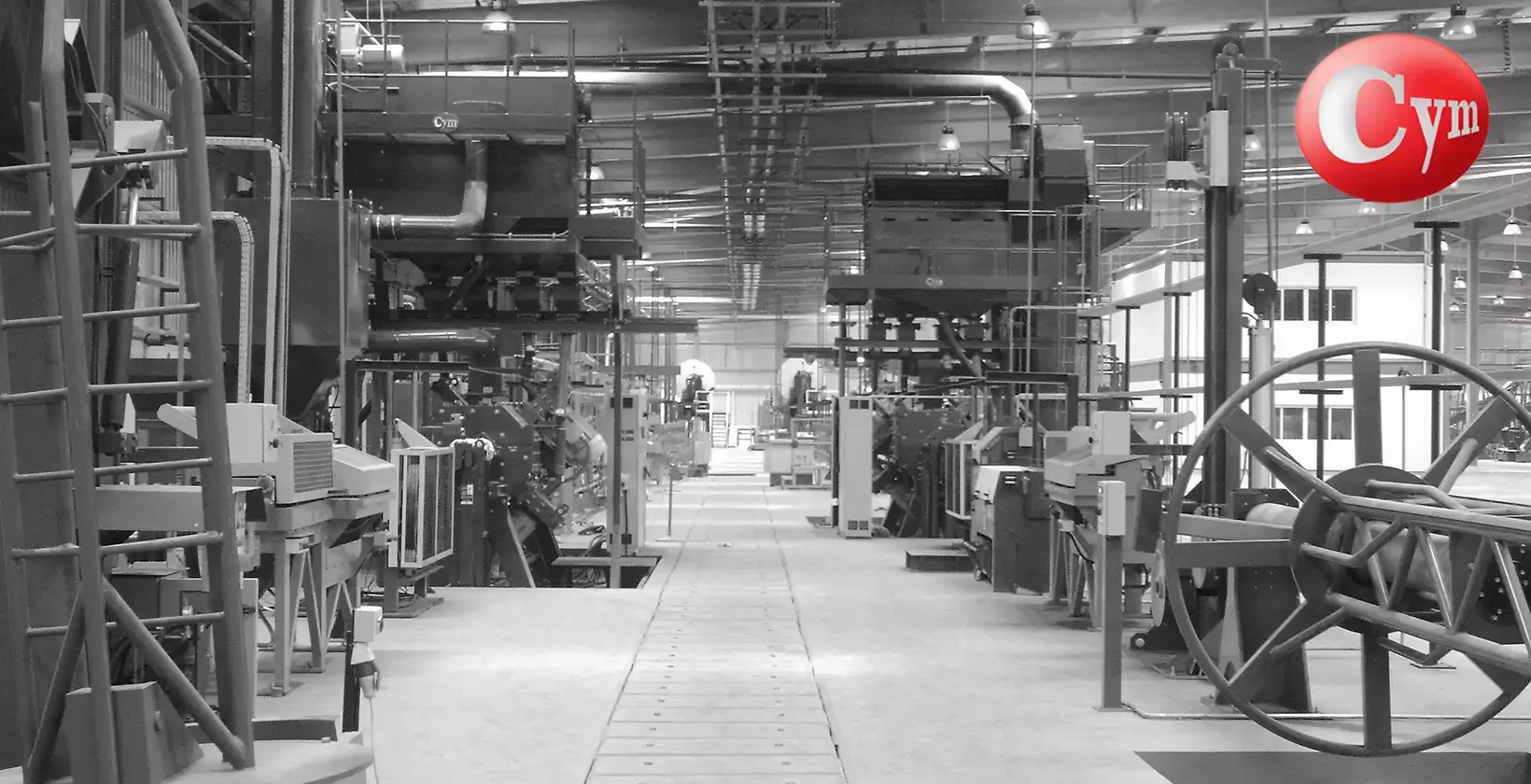

- Integrable into wire drawing lines with decoilers, straighteners and bar conveyors.
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | TURBINES | MATERIAL | SECTION | SPEED (m/min) (*) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| QTY | POWER (hp) | WIRE | BAR | BILLET | ◯ | ▦ | ⬡ | ▭ | ||
| BAR 1 | 1 | 10 - 60 | - | ✔ | - | ✔ | - | - | - | 5 - 250 |
| BAR 2 | 2 | 10 - 60 | ✔ | ✔ | - | ✔ | ✔ | ✔ | ✔ | 5 - 250 |
| BAR 3 | 3 | 10 - 60 | ✔ | ✔ | - | ✔ | ✔ | ✔ | ✔ | 5 - 250 |
| BAR 4 | 4 | 10 - 60 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 5 - 250 |
Notes: (*) The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. (**) Equipment production varies according to the installed turbine power and the amount of mill scale, paint, oxides and the required shot blasting finish grade.
