Tube shot blasting

TUB, PER & TUB-I LINE

Tube shot blasting by blast wheel — external and internal in continuous line

CYM Materiales offers complete solutions for pipe shot blasting by centrifugal blast wheel, for both external and internal treatment in high-productivity continuous process. The machines are designed for pipe coating plants used in the manufacturing of gas pipelines, oil pipelines, water pipelines and other industries requiring a specific set-up to process the same diameter for extended periods of time.

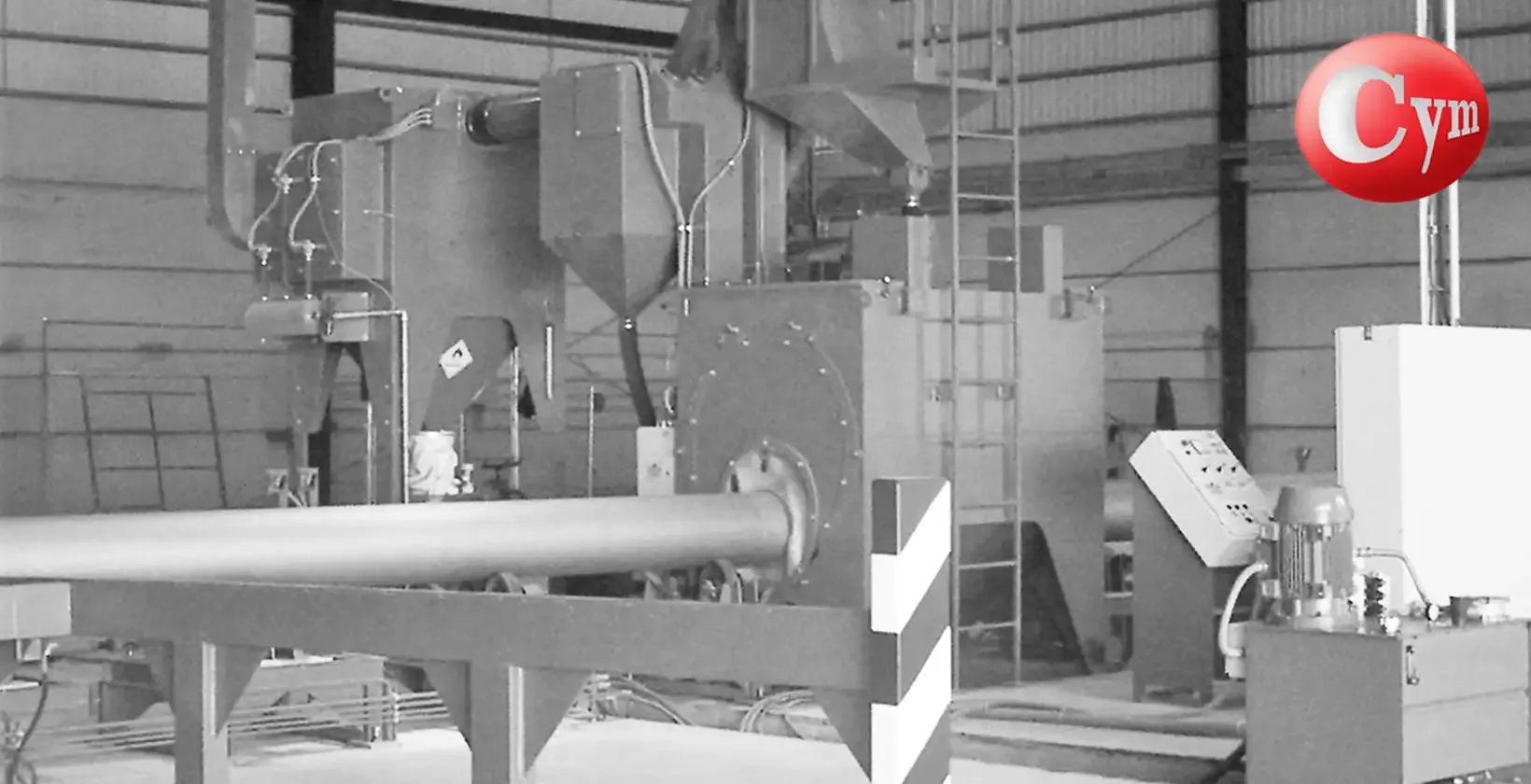

The TUB line processes the exterior of pipes with diameters from 12 mm to over 1524 mm. Thanks to its innovative design, 100% of the abrasive impacts the surface achieving optimum performance, reaching blasting speeds above 20 m²/minute with high-power blast wheels.

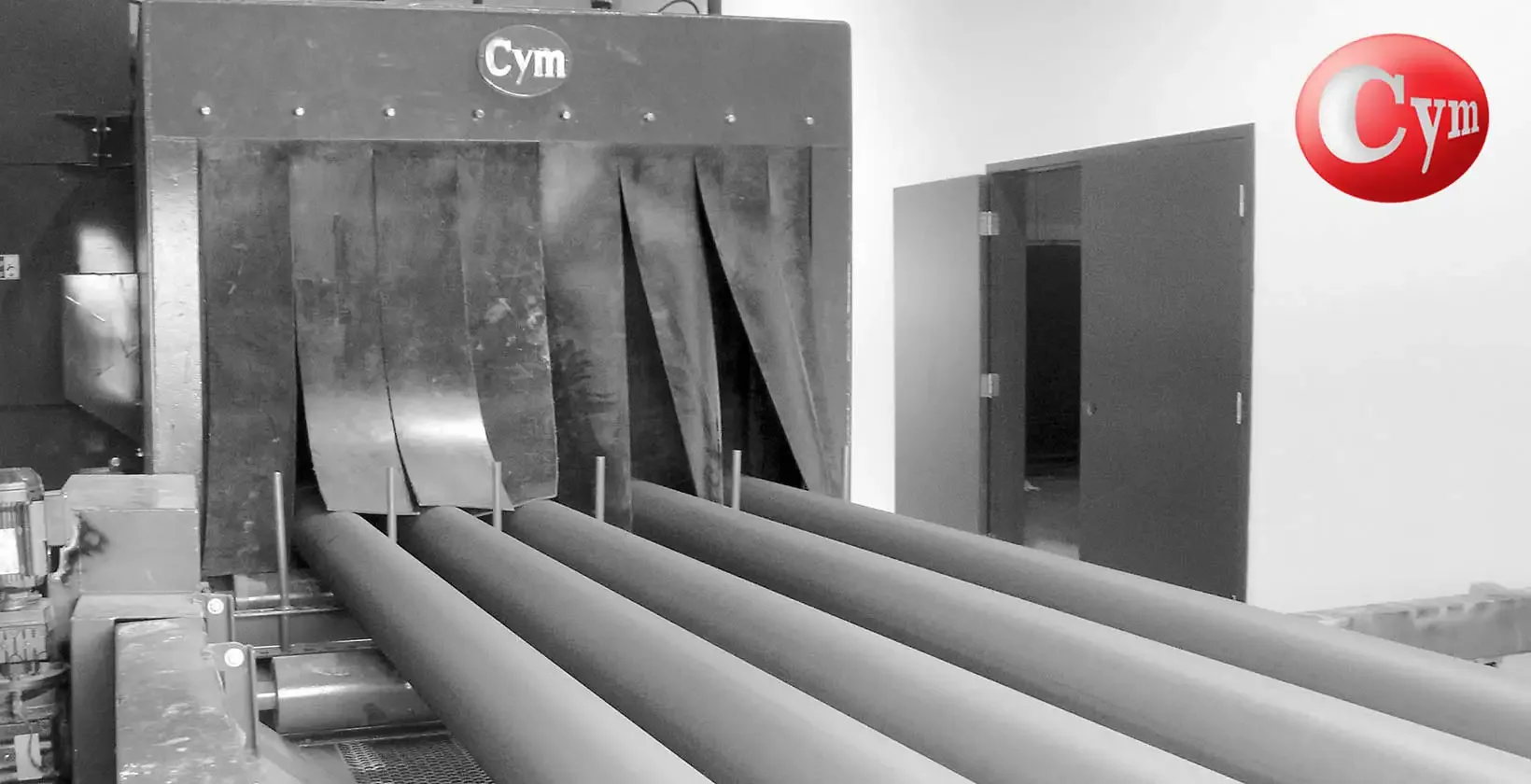

For plants requiring greater flexibility, the PER and EST lines allow processing of raw material and fabricated parts in the same machine: pipes, spools, bent pipes, profiles and welded structures. With fast set-up to switch between diameters or part types, and roller or overhead conveyor transport options, they are the recommended solution when process diversity matters more than per-diameter throughput.

The TUB-I-TR line processes the interior of pipes from Ø20" onwards using centrifugal blast wheels mounted on a rotating head, with production rates of 2 to 7 m²/minute per blast head.

Both internal and external machines are complemented by loading and unloading systems, pipe accumulation racks and external conveyors with simultaneous travel and rotation.

Applications

Uses and shot blasting processes

CYM Materiales pipe blast wheel machines cover the main surface preparation processes required by the oil, gas and infrastructure construction industries. Machines are grouped by process type: external blasting for coating plants and internal blasting for pre-coating cleaning.

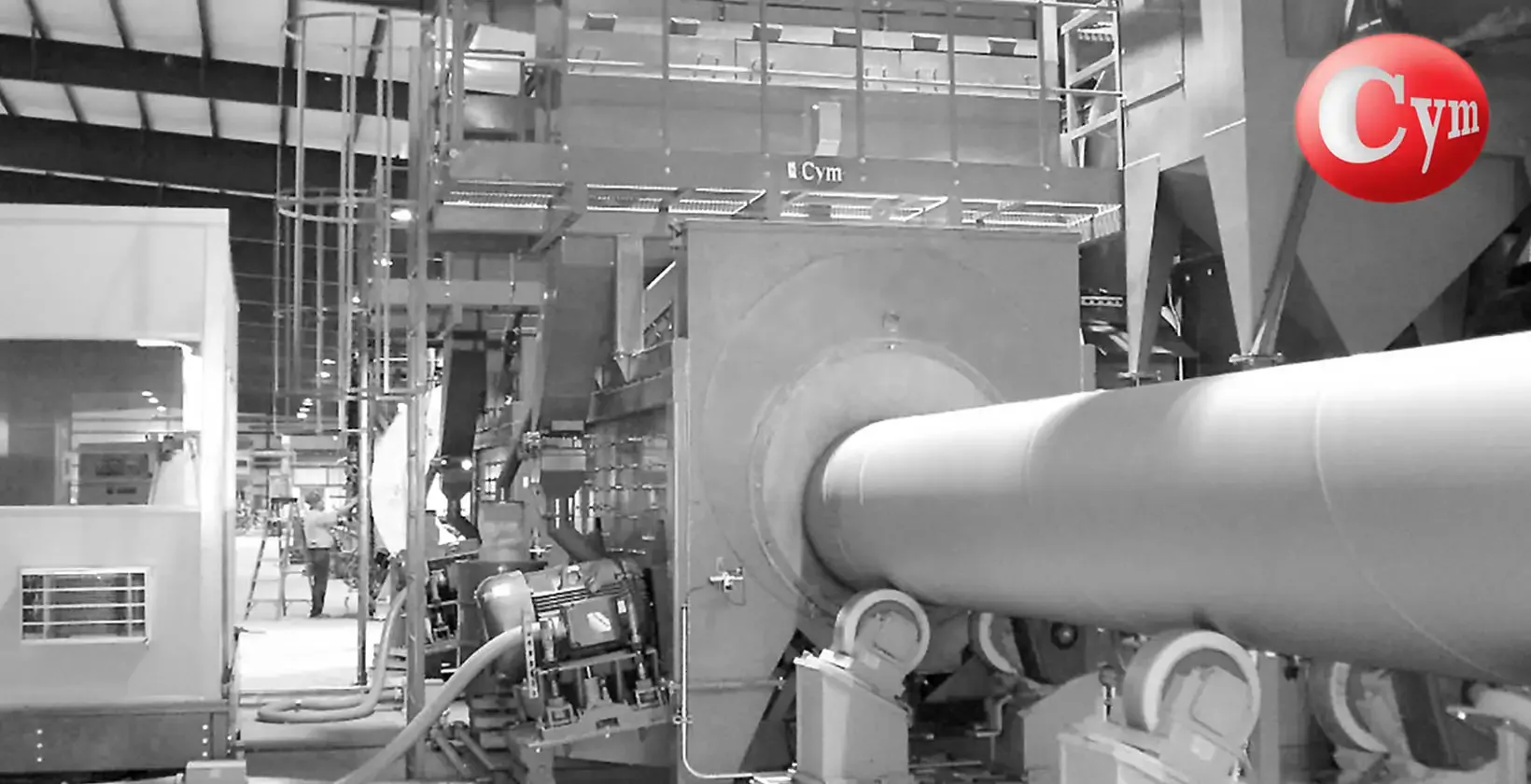

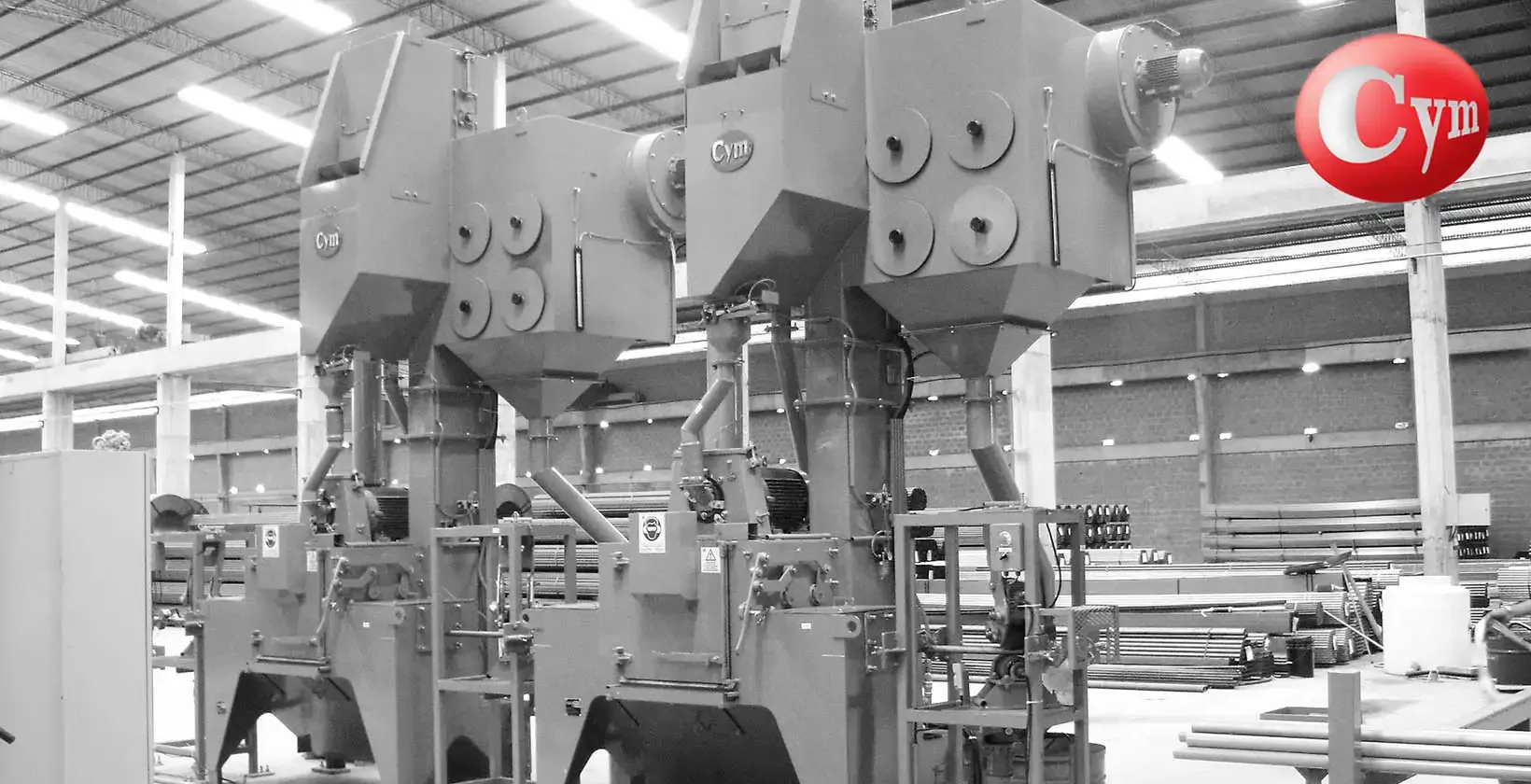

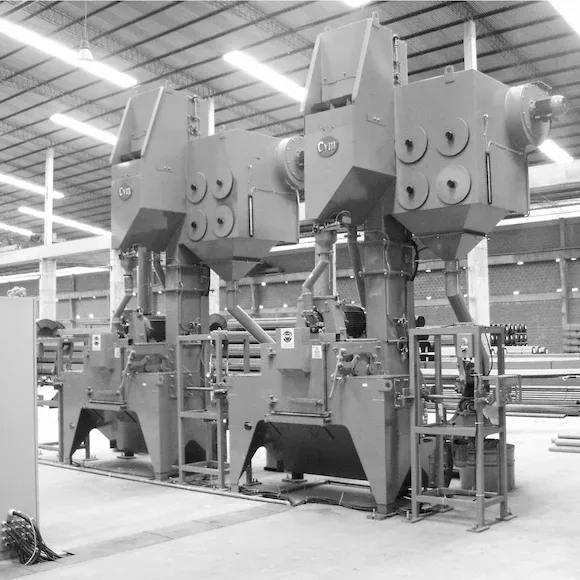

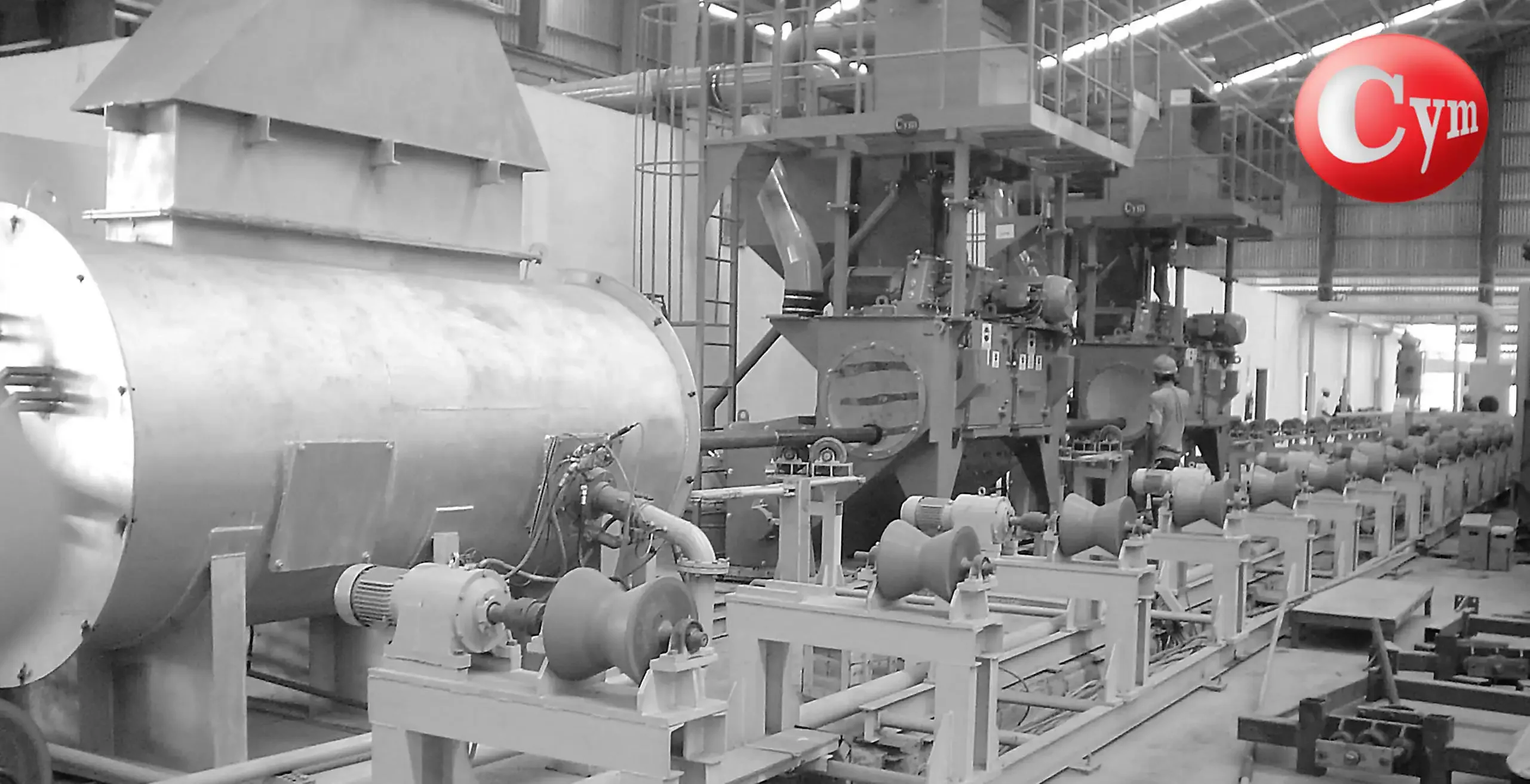

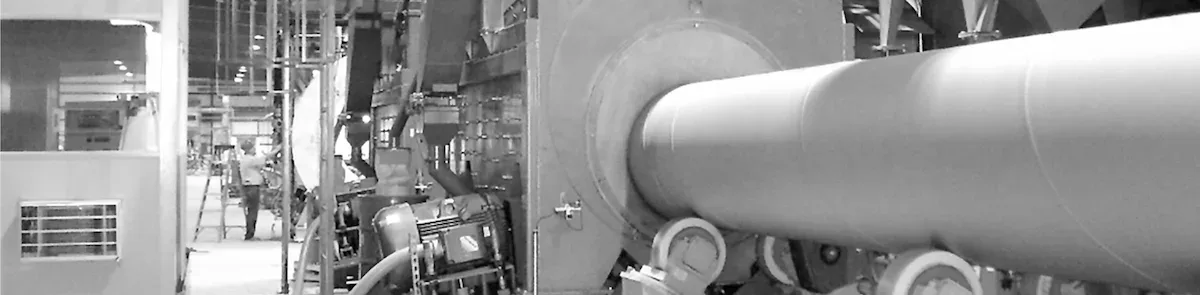

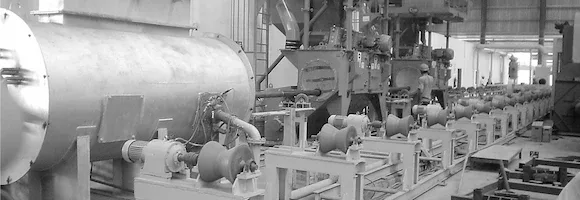

TUB — EXTERNAL PIPE BLASTING

Exterior preparation for epoxy, polyethylene and anticorrosive coatings on gas and oil pipelines
Diameters from 12 mm to over 1524 mm (60")
Speeds up to 20 m²/minute with high-power blast wheels
Fixed set-up per diameter, high throughput for coating plants
Simultaneous travel and rotation conveyor with accumulation racks

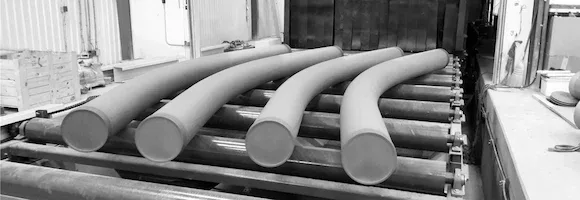

PER/EST — FLEXIBLE PIPE PROCESSING

Exterior preparation for epoxy, polyethylene and anticorrosive coatings on gas and oil pipelines
Diameters from 12 mm to over 1524 mm (60")
Speeds up to 20 m²/minute with high-power blast wheels
Fixed set-up per diameter, high throughput for coating plants
Simultaneous travel and rotation conveyor with accumulation racks

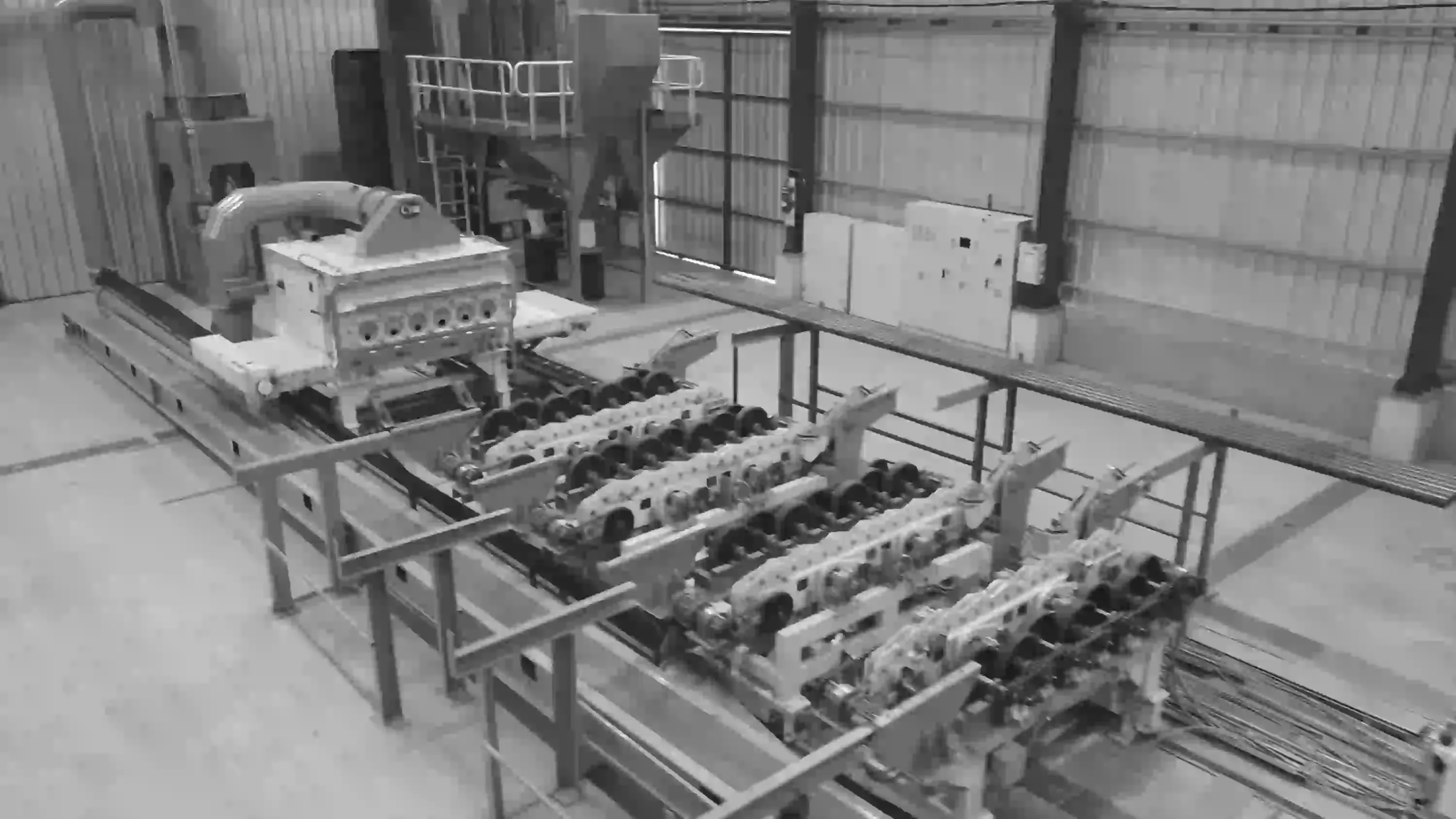

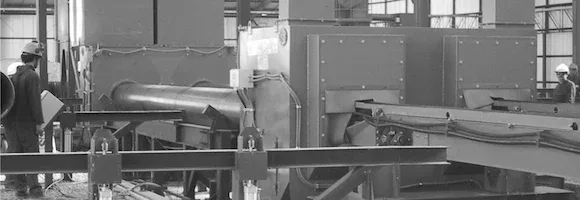

TUB-I-TR — INTERNAL BLASTING BY BLAST WHEEL

Internal blasting from Ø20" with high-power centrifugal blast wheels
Production of 2 to 7 m²/minute per blast head
Transverse movement and simultaneous pipe rotation system
Ideal for large-diameter pipes in internal coating plants
Can be integrated with external TUB blasting in a combined line

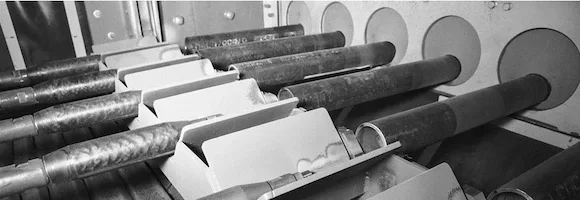

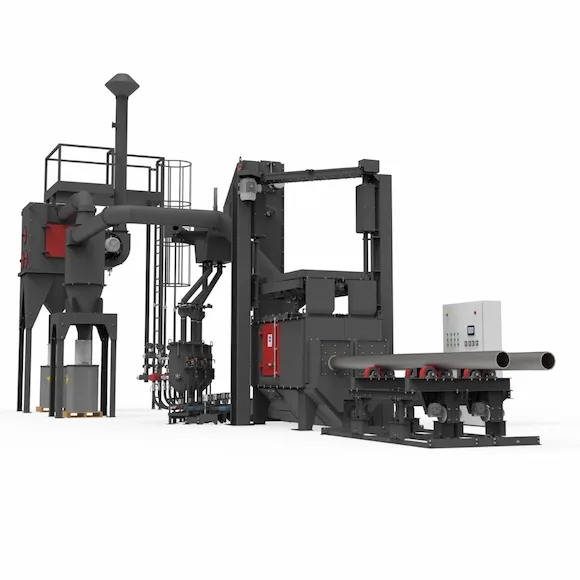

TUB-I-AC — INTERNAL BLASTING BY COMPRESSED AIR

Internal blasting from Ø3/4" with compressed air lances
Single or multiple blast lances depending on diameter and required production
Manual or automatic blast head movement system
Suitable for small and medium diameters, threads and couplings
See full line at Internal Pipe Blasting by Compressed Air

EQUIPMENT SELECTION

What do you need to blast? Find your machine

Select the process type to see the recommended equipment line.

PROCESS TYPE	TUB	PER/EST	TUB-I-TR	TUB-I-AC	THREADS
External — straight pipes, fixed diameter	✔
External — straight pipes, variable diameters		✔
External — spools, bent pipes and fittings		✔
External — profiles and welded structures		✔
Internal — from Ø20" by blast wheel			✔
Internal — from Ø3/4" by compressed air				✔
Internal — without pipe rotation				✔
Threads and couplings — surface preparation					✔
Threads and couplings — shot peening					✔

Equipment lines

Select the equipment for your application

Line TUB-I-AC

Internal pipe blasting

Internal pipe blasting machines using compressed air for pipes from Ø3/4". Single or multiple simultaneous lances with manual or automatic head movement and pipe rotation. Covers diameters where centrifugal blast wheels are not applicable.
