Blast room with manual recovery

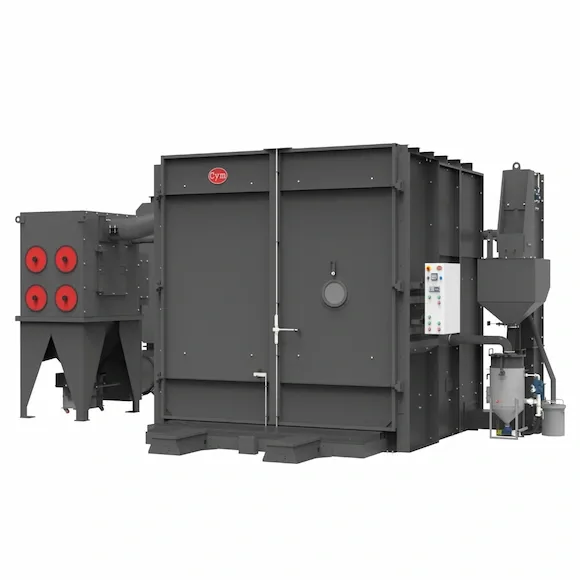

The manual recovery blast room is the lowest initial investment solution in the CYM blast room line. The system uses a flat floor from which the operator sweeps the abrasive to a screw conveyor or collection hopper, which feeds it to the bucket elevator, ARC purifier and back to the accumulation silo. The absence of automatic sweeping mechanisms reduces installation cost and simplifies equipment maintenance.
Manual recovery is available in four screw conveyor configurations: central, cross, H-pattern and lateral hopper. All models include an integrated ARC abrasive purifier. The blast room is designed to incorporate automatic oscillating scrapers at a later stage without replacing the main cabinet — the ideal option for operations starting with a limited investment and scaling as production volumes grow.

• Four screw conveyor configurations: central, cross, H-pattern and lateral hopper
• Bucket elevator with SAE1035 cast steel buckets

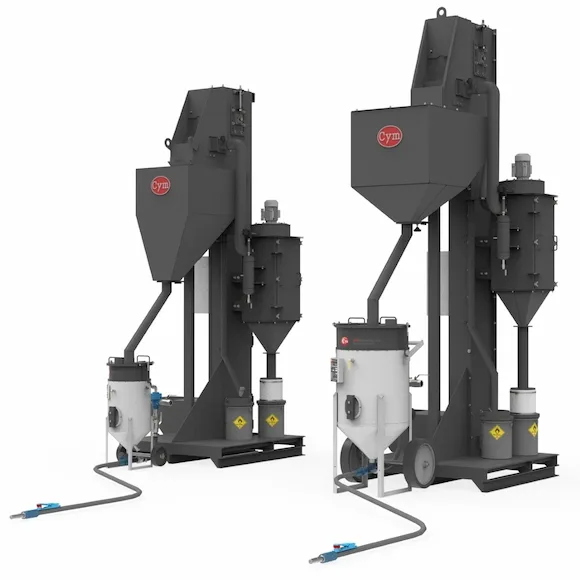

• Integrated ARC abrasive purifier — maintains constant working abrasive mix

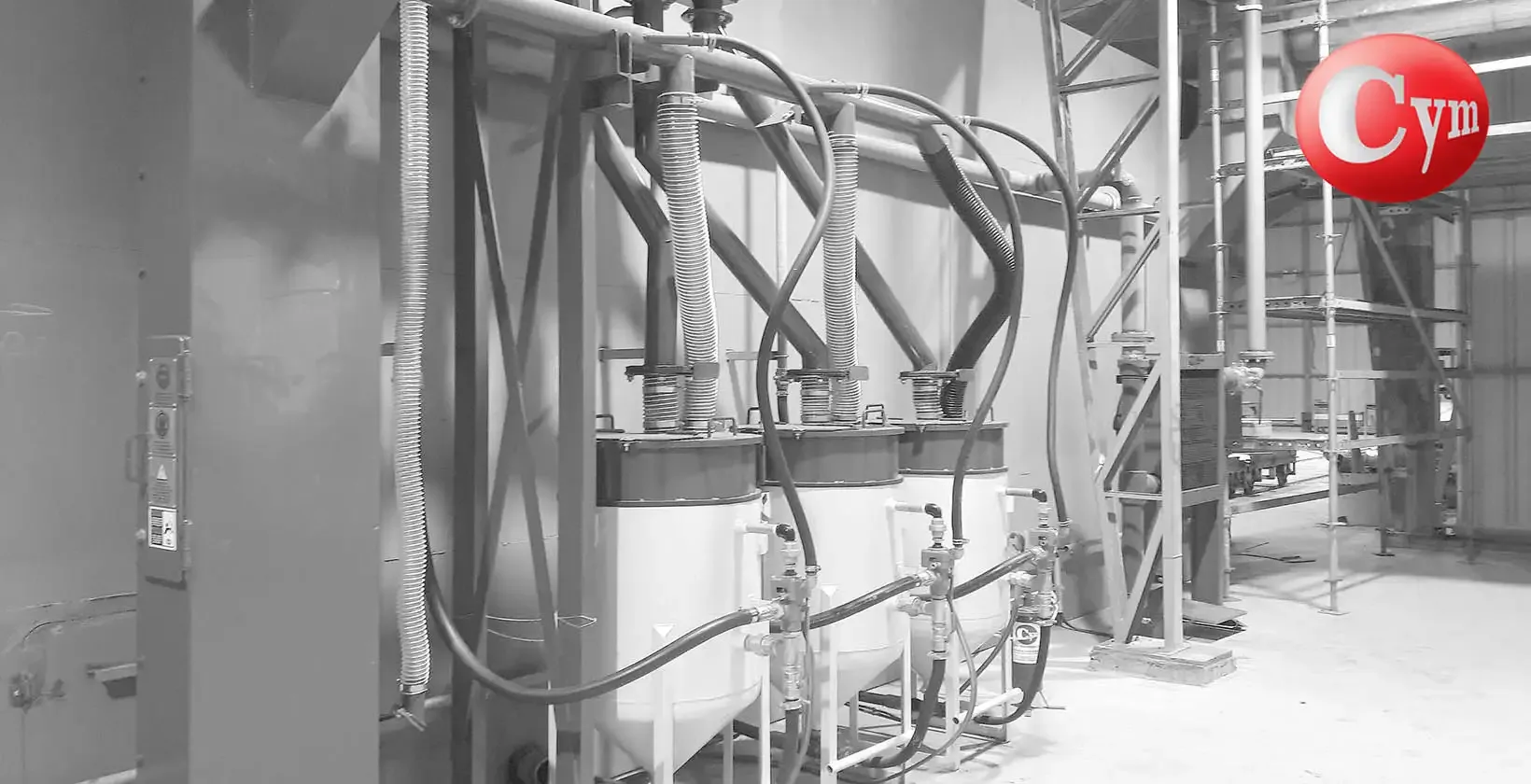

• CYM blast pots — CY-70, CY-150, CY-500 and CY-550 models according to required flow rate
• Dust collector with cartridge filters, automatic Pulse Jet cleaning and particulate emission below 5 mg/Nm³
• Scalable: designed to incorporate automatic oscillating scrapers without replacing the main cabinet
