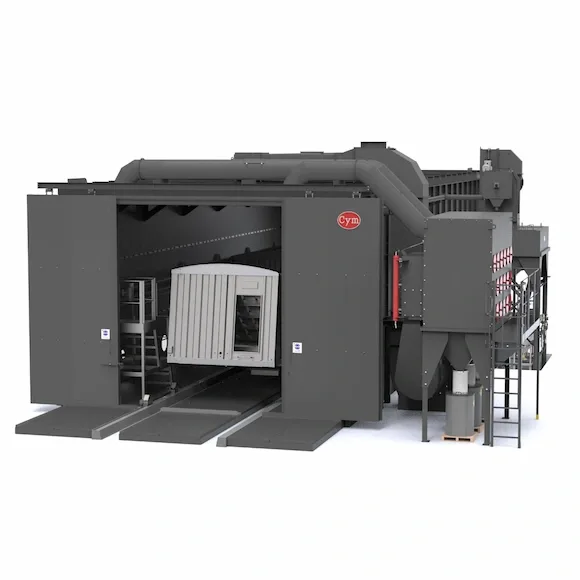

Blast room with mechanical recovery
Mechanical recovery
Oscillating scrapers — automatic abrasive recovery
The CYM mechanical recovery blast room uses pilgrim step oscillating scrapers covering the entire floor, pushing the abrasive to the transverse screw conveyor, bucket elevator and ARC purifier. The process is 100% automatic. Drive can be pneumatic — up to 4 simultaneous operators with a Ø10 mm nozzle — or electromechanical for high abrasive volume. Three mounting options: without pit, with a 200 mm pit or with a central pit for rolling stock.
- Pilgrim step oscillating scrapers — 100% automatic recovery
- Pneumatic or electromechanical drive according to production volume
- Three mounting options: without pit / 200 mm pit / central pit for rolling stock
- Transverse screw conveyor or scraper + SAE1035 bucket elevator
- Integrated ARC abrasive purifier
- CYM blast pots — CY-70, CY-150, CY-500 and CY-550
- Dust collector with automatic Pulse Jet cleaning — emission below 5 mg/Nm³
- Floor grating in expanded metal or reinforced for heavy loads
MOUNTING AND DRIVE OPTIONS
Scraper configurations for mechanical recovery
| CONFIGURATION | DESCRIPCIÓN | IDEAL PARA |
|---|---|---|
| Without pit | Scrapers and grating mounted directly on the existing floor | Installations without civil works |
| 200 mm pit | Scraper grating at floor level — working floor at plant level | New installations — easy access for operators and loads |
| Central pit | Central pit for underside access to rolling stock | Wagons, semi-trailers, rolling stock and large equipment |
| Pneumatic drive | Scrapers driven by compressed air | Up to 4 simultaneous operators with Ø10 mm nozzle — lower investment |
| Electromechanical drive | Electric motor — cycles independent of the air system | High abrasive volume — continuous high-production installations |
The central transverse screw conveyor requires a pit. The end-of-room transverse scraper requires no civil works.
