Blast room & Shot peening Robot and Manipulators
Automatic blasting — robot and manipulators
No operator inside — full coverage and repeatable cycles

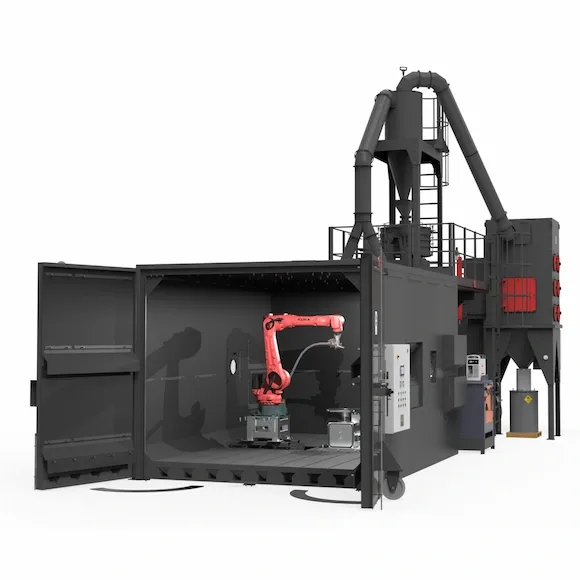

The CYM robot or nozzle manipulator blast room performs the blasting process automatically and repeatably, with no operator inside during the cycle. The system follows the programmed path for each part type, guaranteeing full coverage with no blind spots — at the same pressure, distance and speed parameters in every cycle. Compatible with mechanical or pneumatic abrasive recovery according to the abrasive type used.
- 3 to 5-axis industrial robot or X/Y nozzle manipulator — part-specific programming
- Programmed path — full coverage with no blind spots in every cycle
- 100% repeatable cycles — same pressure, distance and speed parameters
- No operator inside during the process — maximum operational safety
- Compatible with mechanical recovery (heavy abrasives) or pneumatic (light abrasives)
- CYM blast pots — CY-70, CY-150, CY-500 and CY-550
- Dust collector with automatic Pulse Jet cleaning — emission below 5 mg/Nm³
ROBOT OR MANIPULATOR — SELECT THE SYSTEM
Industrial robot vs nozzle manipulator
| SYSTEM | DESCRIPTION | IDEAL FOR |
|---|---|---|
| Industrial robot 3-5 axes | Articulated arm with multi-axis path control — part-specific programming | Complex geometries, varied parts, localised shot peening |
| X/Y nozzle manipulator | 2-3 axis movement — fixed or linear nozzle motion | Regular parts, series production, lower investment |
Note: Both systems are compatible with mechanical or pneumatic recovery according to abrasive type. The industrial robot is the recommended system for precision shot peening processes.
Related products
Alternative or complementary equipment
SAT 2 - robot line
Localized shot peening
Industrial robot and CNC rotating table for automotive, railway and aerospace components.
Leer mas
SAT-AC-SP LINE
Localized Shot peening
SAT-AC machines for precision shot peening with Magna Valve, X-Z nozzles and ground surface masking. Gears, discs and transmission components.
Leer mas

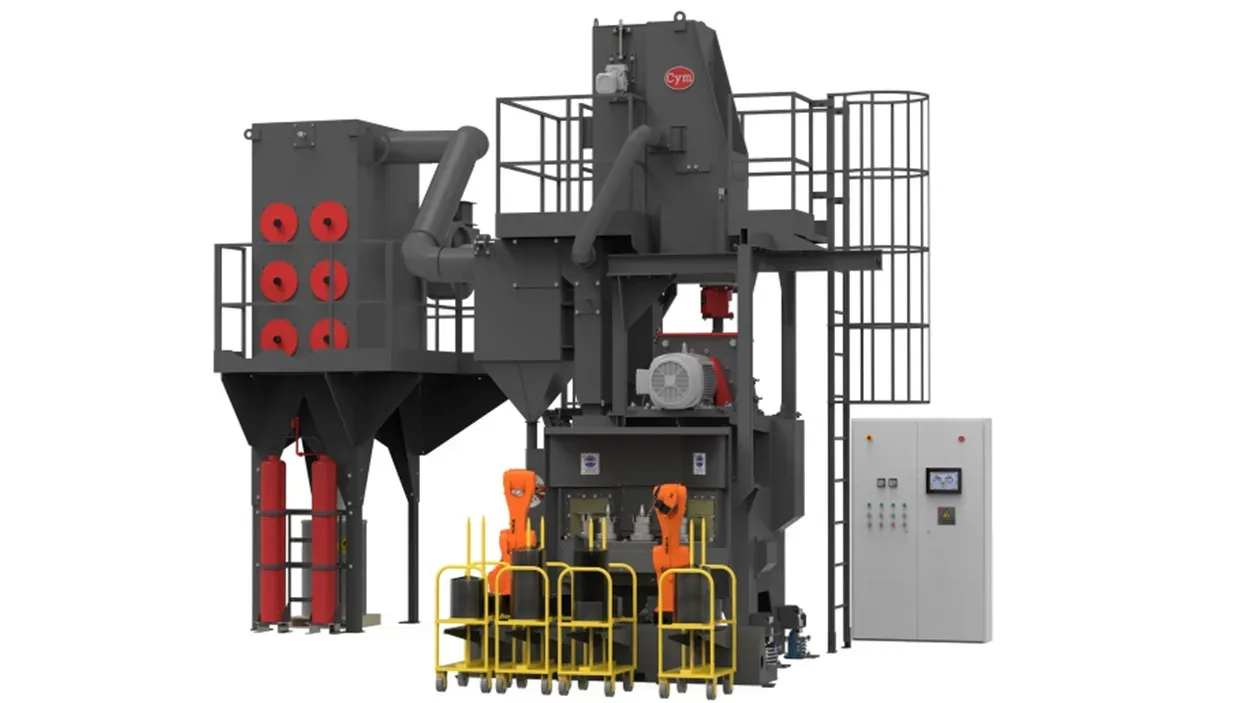

SAT-TR-SP LINE
