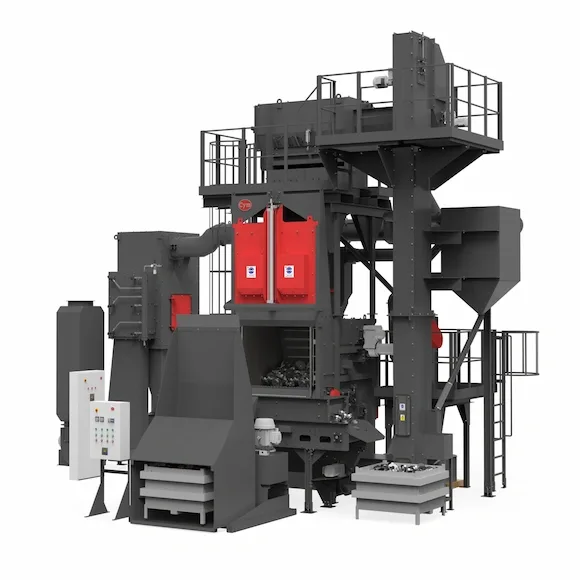

Tumblast Belt Shot Blast Machine 2 Blast Wheels
LÍNE LT — 2 TURBINES
Higher capacity, shorter cycle time — dual blast wheel

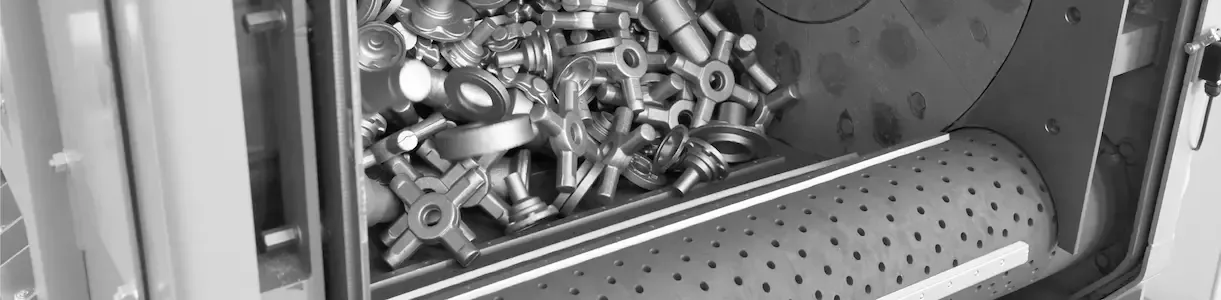

Automatic batch shot blast machine with dual blast wheels, designed for surface treatment of larger bulk parts and plants with medium to high production requirements. Parts tumble on a perforated rubber or steel belt throughout the process. Available in capacities of 130, 240, 450 and 600 liters, the dual blast wheel configuration reduces blasting time by 40% to 50% compared to single blast wheel machines with similar installed power.
- Suitable for larger and heavier parts, with load capacities from 130 to 600 liters for medium to high production volumes.
- Blasting time reduced by 40% to 50% compared to single blast wheel machines with similar installed power.
- Greater surface finish homogeneity thanks to simultaneous impact from two blast wheels.
- Lower shot and electricity consumption per finished part, with reduced labor costs.
- Available with rubber or steel belt depending on part type and weight.
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | TURBINES | BELT | LOAD CAPACITY | PRODUCTION KG/HOUR (**) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QTY | POWER | G | M | LITERS (*) | TOTAL (KG) | UNITARY (KG) | PRODUCT DENSITY (KG/M3) | |||||||
| HP | KW | G | A | G | A | 800 | 1000 | 1500 | 2000 | |||||
| LT 130 | 2 | 10 | 7.5 | X | X | 130 | 250 | 500 | 20 | 60 | 415 625 | 510 780 | 780 1170 | 1040 1560 |
| LT 240 | 2 | 20 | 15 | X | X | 240 | 1000 | 1500 | 50 | 200 | 750 960 | 960 1200 | 1440 1800 | 1920 2400 |
| LT 450 | 2 | 30 | 22.5 | X | X | 450 | 1800 | 2000 | 50 | 200 | 1400 2160 | 1750 2700 | 2600 4050 | 3500 5400 |
| LT 600 | 2 | 30 | 22.5 | X | X | 600 | 1800 | 2000 | 50 | 200 | 1400 2160 | 1750 2700 | 2600 4050 | 3500 5400 |
Notes: G: Rubber belt // M: Steel belt (*) The useful load capacity in liters is an average value and varies according to the type of parts to be shot blasted. (**) Production calculations (kg/h) are estimated and vary according to the density of the parts to be shot blasted (kg/m³). The referenced values also vary according to the amount of mill scale, paint, sand, oxides and the finish grade required in the shot blasting process.

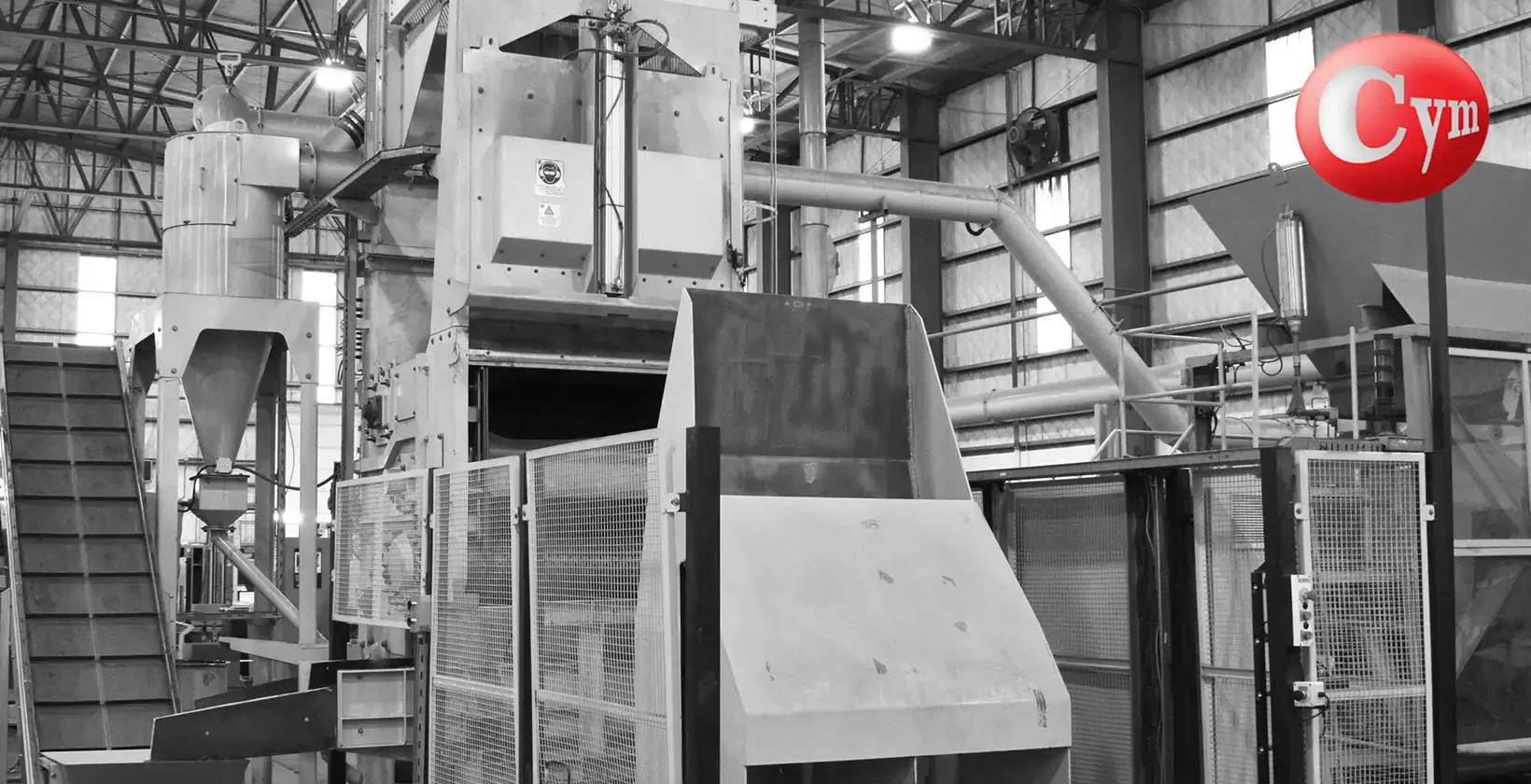

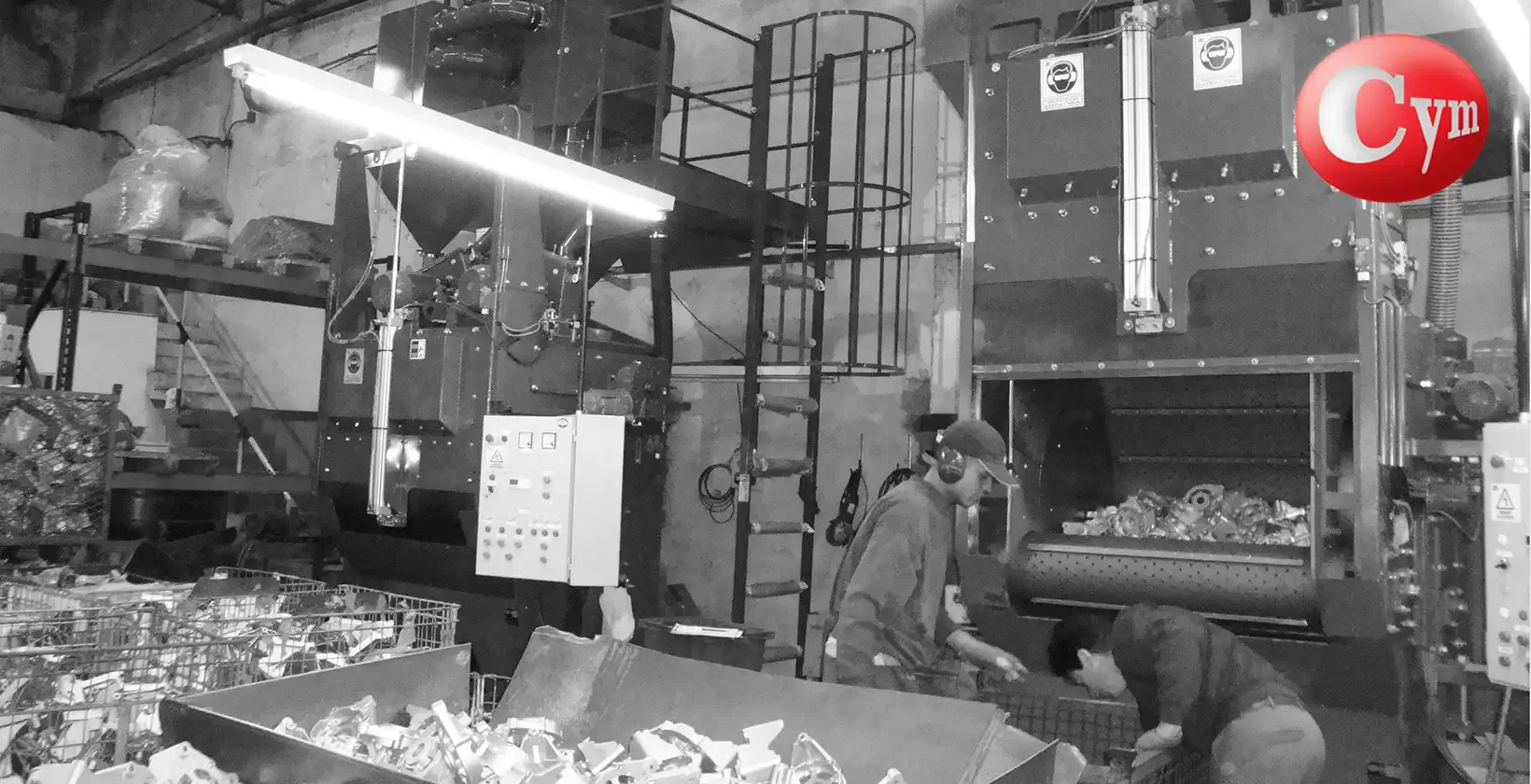

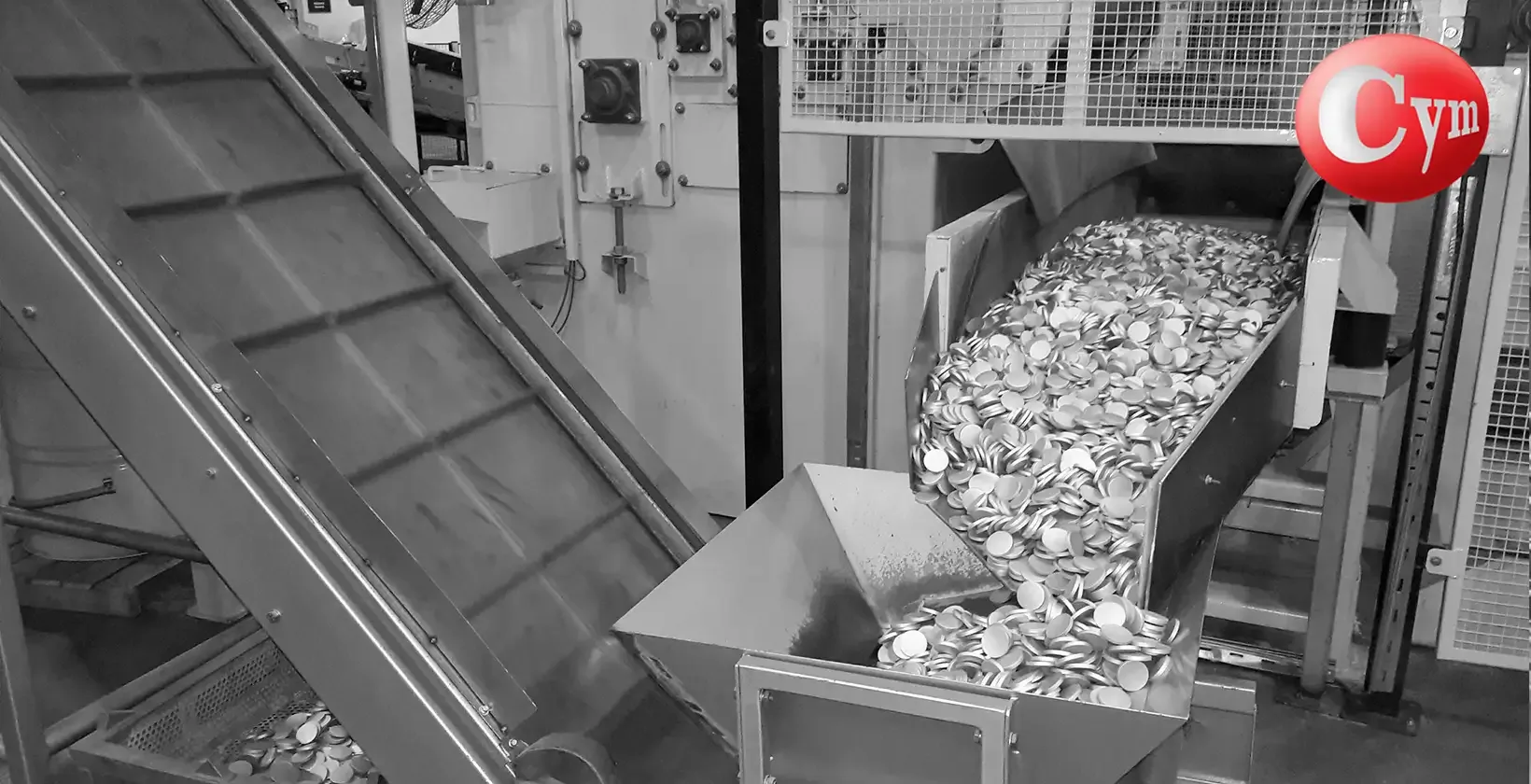

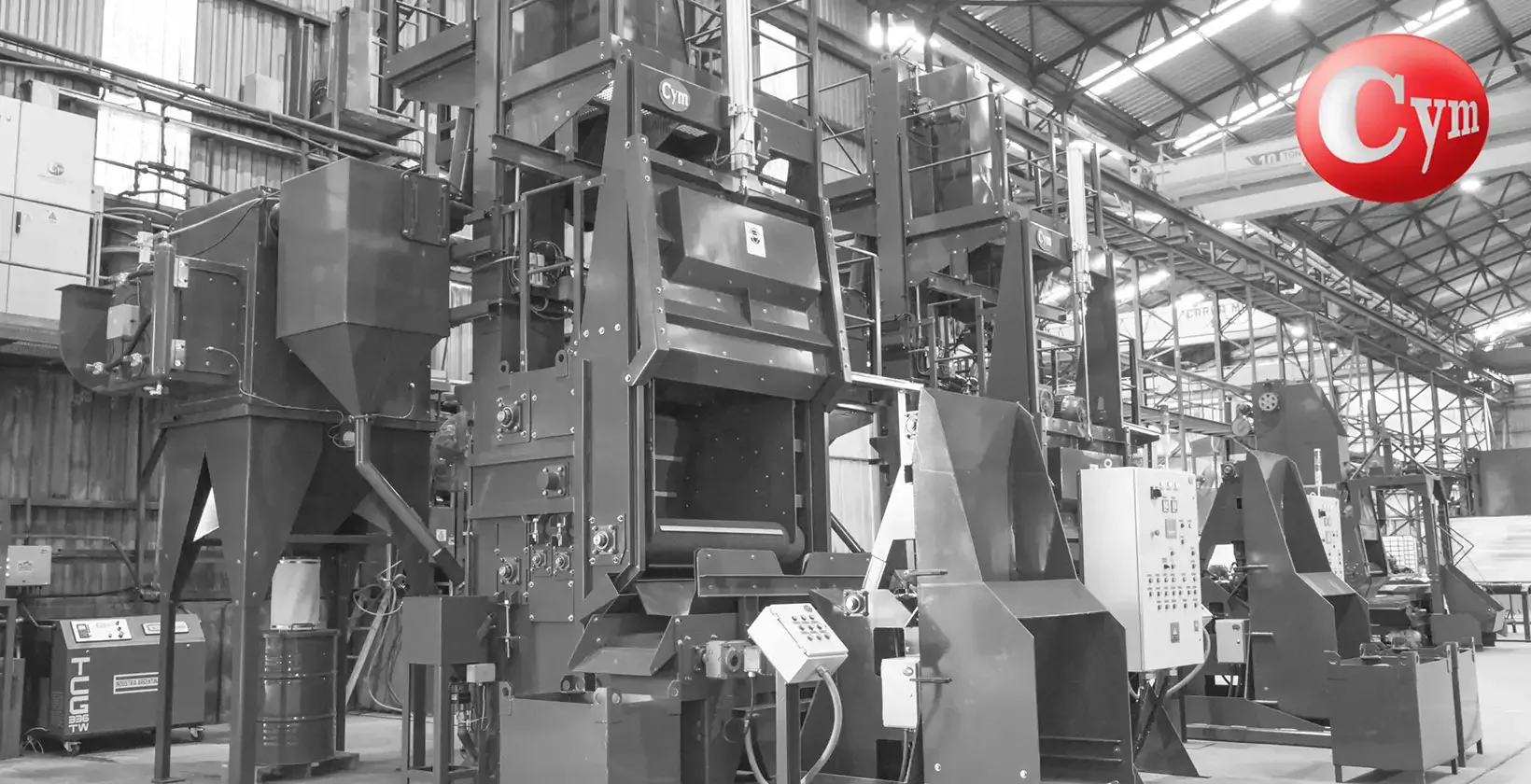

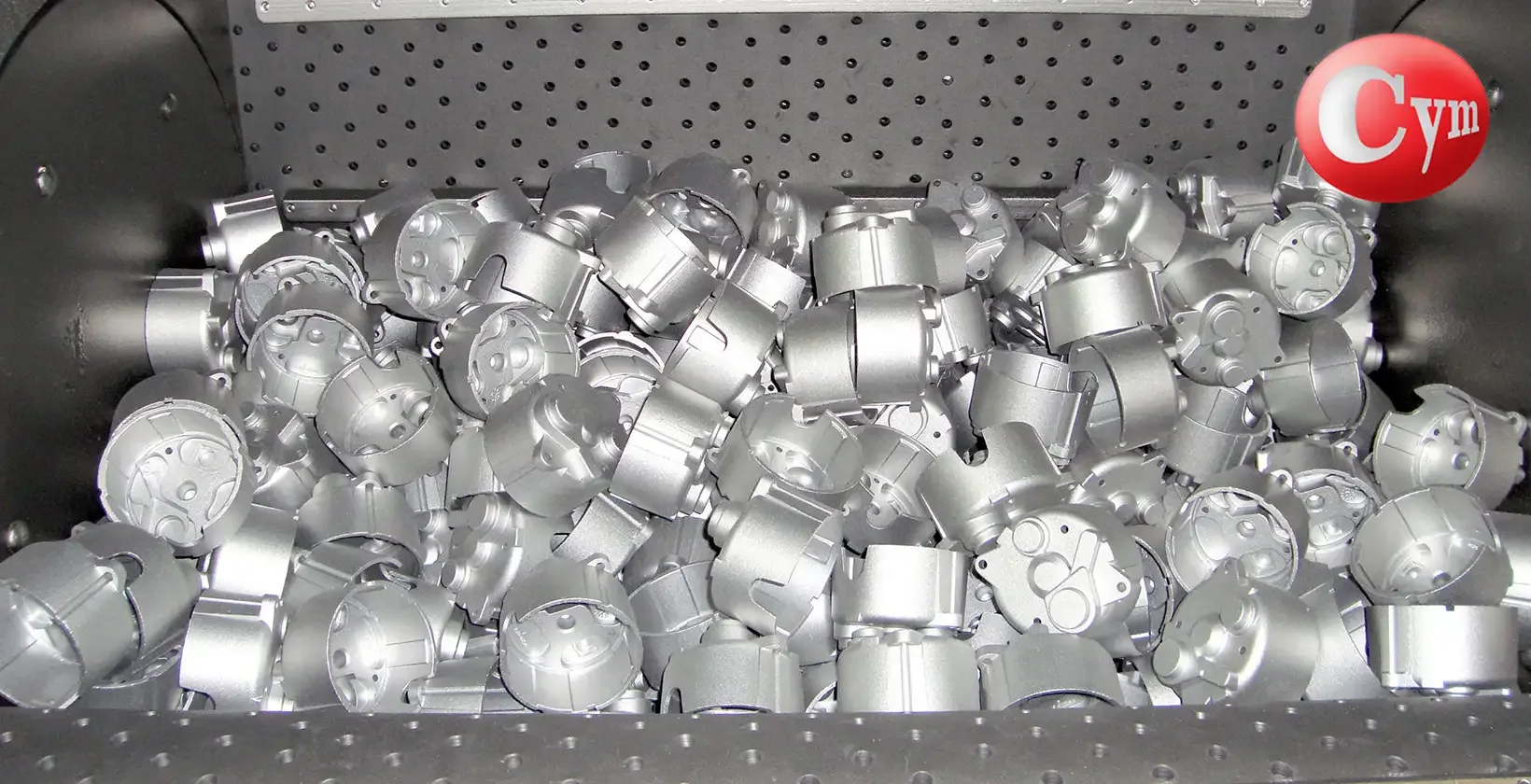

Installations
Equipment in operation
Videos
Equipment in action

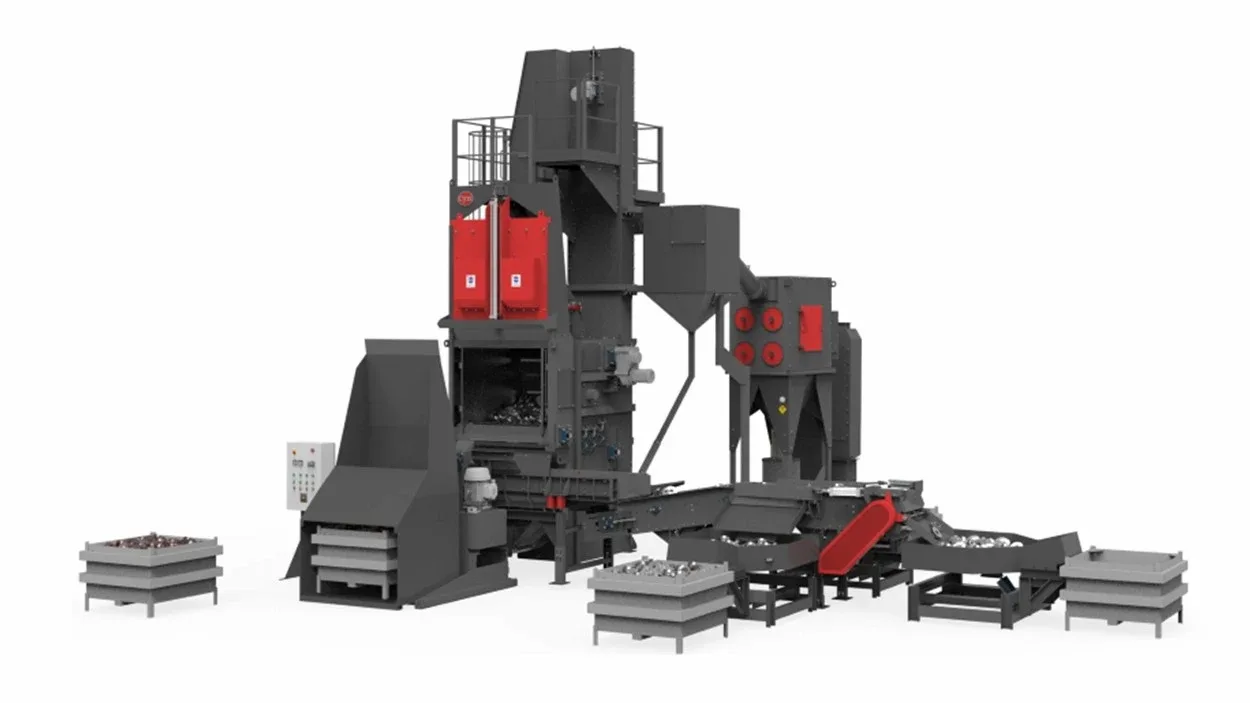

Special Projects
Can't find the equipment you need?
CYM Materiales develops it.
Our Engineering and Sales team works alongside the client to design a custom solution, reducing operating costs and maximizing productivity. Every project starts with a detailed technical assessment and ends with a machine built and tested at our plant
REQUEST A CUSTOM PROJECT
