Fire and dust explosion risk

For a dust explosion to occur, five conditions must be met simultaneously. This is what the “explosion pentagon” represents: removing just one of its elements is enough to prevent the explosion (though not necessarily the fire).

• Combustible dust, in particles fine enough to propagate the flame.

• Dispersion: the dust must be suspended in air forming a cloud.

• Concentration within the material's explosive range.

• An ignition source with enough energy (spark, flame, hot surface, static discharge).

• Confinement in a closed enclosure (equipment, ducts, building) and the presence of oxygen.

The difference from a fire is speed: in a dust cloud, combustion spreads from one particle to the next at high velocity, generating a pressure wave.

Not all dust is equally dangerous. The risk rises sharply with the finest fractions.

• Particles larger than 500 µm generally present a low combustion risk.

• Processes usually produce a mix of coarse and fine material (below 420 µm): the fines ignite easily and, in doing so, also ignite the coarser particles.

• Changes in the process —speed, alloy, lubricant or abrasive— can generate finer particles and raise the risk, which makes it necessary to reassess explosivity.

• The accumulation of fine dust can cause secondary explosions: a first deflagration lifts the dust deposited in the area and, when it ignites, produces subsequent explosions that are usually more destructive than the initial one.

Prevention rests on reducing the available dust and eliminating ignition sources.

• Minimize the generation and dispersion of combustible dust and prevent its accumulation on floors, ducts, hoppers and structures (focus on secondary explosions).

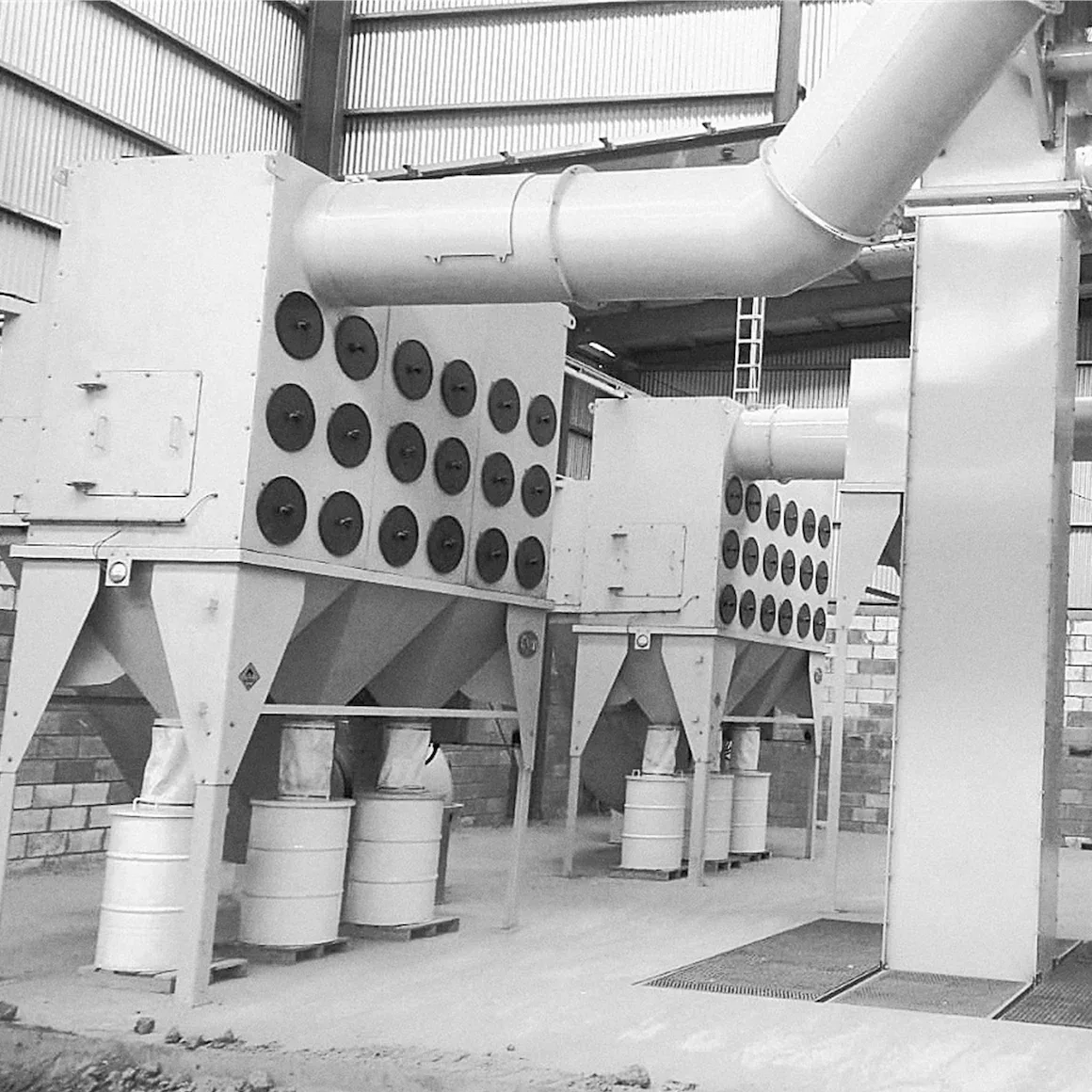

• Keep extraction systems operational: they capture the potentially explosive fine particles at the source.

• Ensure grounding of equipment, collectors and drums to dissipate static.

• Clean without raising dust clouds: by vacuum or direct collection, never with compressed air; use natural-fiber brushes and anti-spark tools.

• Discharge the dust into grounded metal containers and empty them daily.

• Apply lockout/tagout (LOTO) before opening or servicing the equipment, and manage a hot-work permit before welding or cutting.

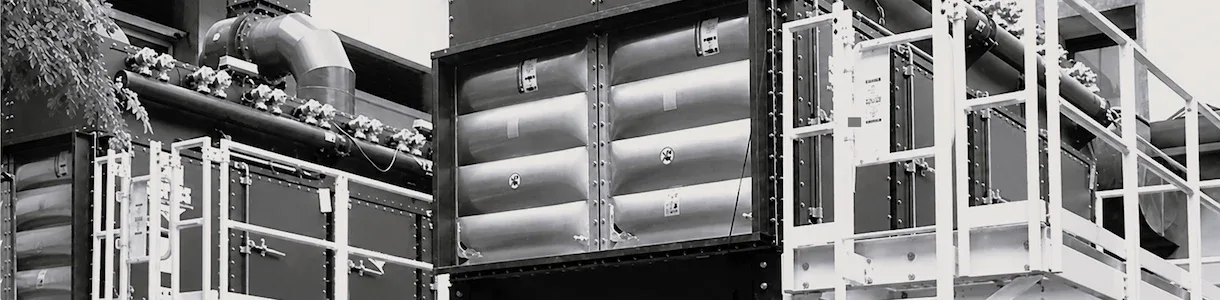

The choice between a dry and a wet collector depends on the dust's degree of explosivity, the location and the costs; combustible metal dusts usually steer the decision toward the wet scrubber. With combustible organic dusts —grain, flour, wood— capture is handled dry, but the collector must be protected with deflagration venting and explosion isolation.

The risk level is defined by the material, not the machine. In blasting with coarse mineral or metal abrasives the explosion risk is low; by contrast, fine metal dusts, organic dusts —grain, flour, wood, food— and some plastics call for specific measures. In addition, the fine dust generated by wear, removed paint or contaminants can change the explosive behavior of any process, and material changes or the addition of lubricants can alter the effective Kst of the accumulated dust.

That is why it is advisable to prevent the accumulation of fine dust, keep the extraction always operational and test real samples whenever there are doubts about the dust composition.
