Tubular scaffold shot blasting

For a scaffold rental company, every unit returning from a job site is an asset that must be rented again. The scaffold returns with adhered concrete, rust and deteriorated paint — a presentation that affects the image before the next customer and, over time, the service life of the material. Shot blasting is the industrial process that cleans the scaffold, leaves it ready to repaint and returns it to "like new" condition for a new rental cycle.

1. The rental scaffold return cycle

The scaffold rental business is based on rotation: the faster a unit returns to available stock and in better condition, the higher the profitability. The problem is that the scaffold returns from the job site covered with concrete and cement residue, surface rust from weather exposure and flaking old paint. Manually cleaning each tube, prop and accessory is slow, costly and gives irregular results. Automatic shot blasting solves the entire reconditioning cycle: it cleans, prepares the surface and leaves the scaffold ready to repaint in a fraction of the time manual work requires.

2. What shot blasting removes in a single pass

Turbine shot blasting projects metallic abrasive at high speed over the entire scaffold surface, mechanically detaching all adhered contaminants: concrete and cement residue from the job site, rust and corrosion, deteriorated old paint, mud and embedded dirt. Unlike chemical pickling, it uses no acids and generates no liquid effluents, and unlike manual brushing, it achieves a uniform result over the entire surface including joints, welds and hard-to-reach areas.

3. Gentle blasting: cleaning without wearing the tube

A scaffold goes through the reconditioning process many times over its service life. That is why scaffold blasting must be a controlled process: the goal is to remove what is adhered without aggressively attacking the base metal or reducing the tube wall thickness with each cycle. CYM Materiales configures the abrasive type, turbine projection intensity and pass speed to achieve effective cleaning while preserving the material. This protects the investment: the same scaffold can be reprocessed dozens of times without the cleaning process itself shortening its service life.

4. Why turbines with variable projection angles

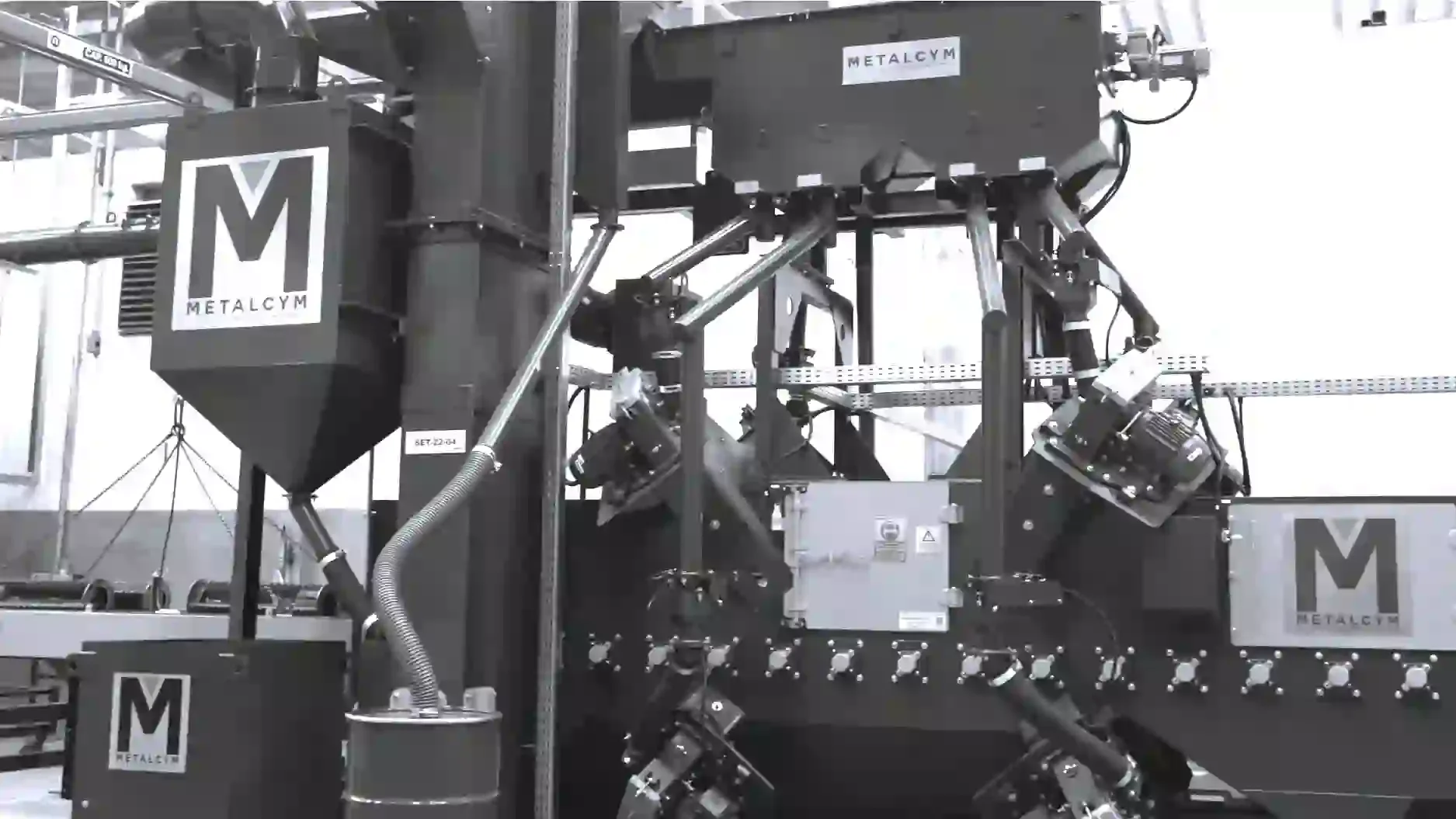

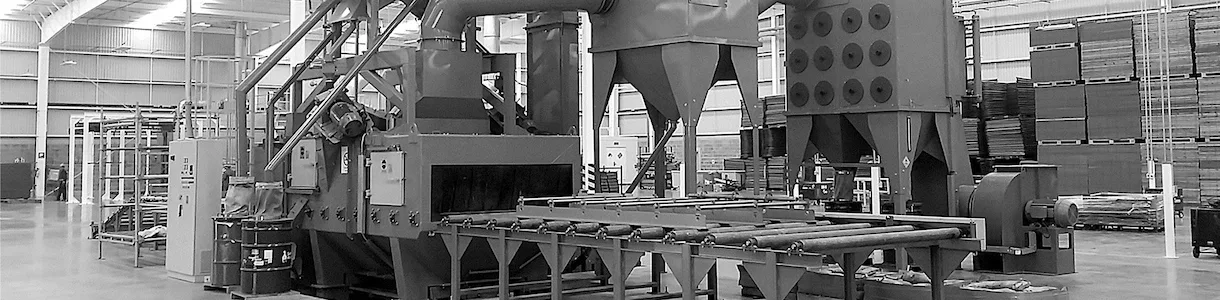

The tubular geometry of scaffolds and the complexity of assembled formwork require the abrasive to reach all faces of the part without blind spots. CYM Materiales equipment lines solve this with turbines positioned at different projection angles. The PER-I line places the turbines at inclined angles, ideal for tubes, profiles and simple welded structures. The EST line uses configurations of 8 to 16 turbines with variable angles that guarantee total coverage on structures of any geometry. In both cases, the scaffold is cleaned over its entire surface in a single continuous pass.

5. Integrated line: from dirty scaffold to painted scaffold

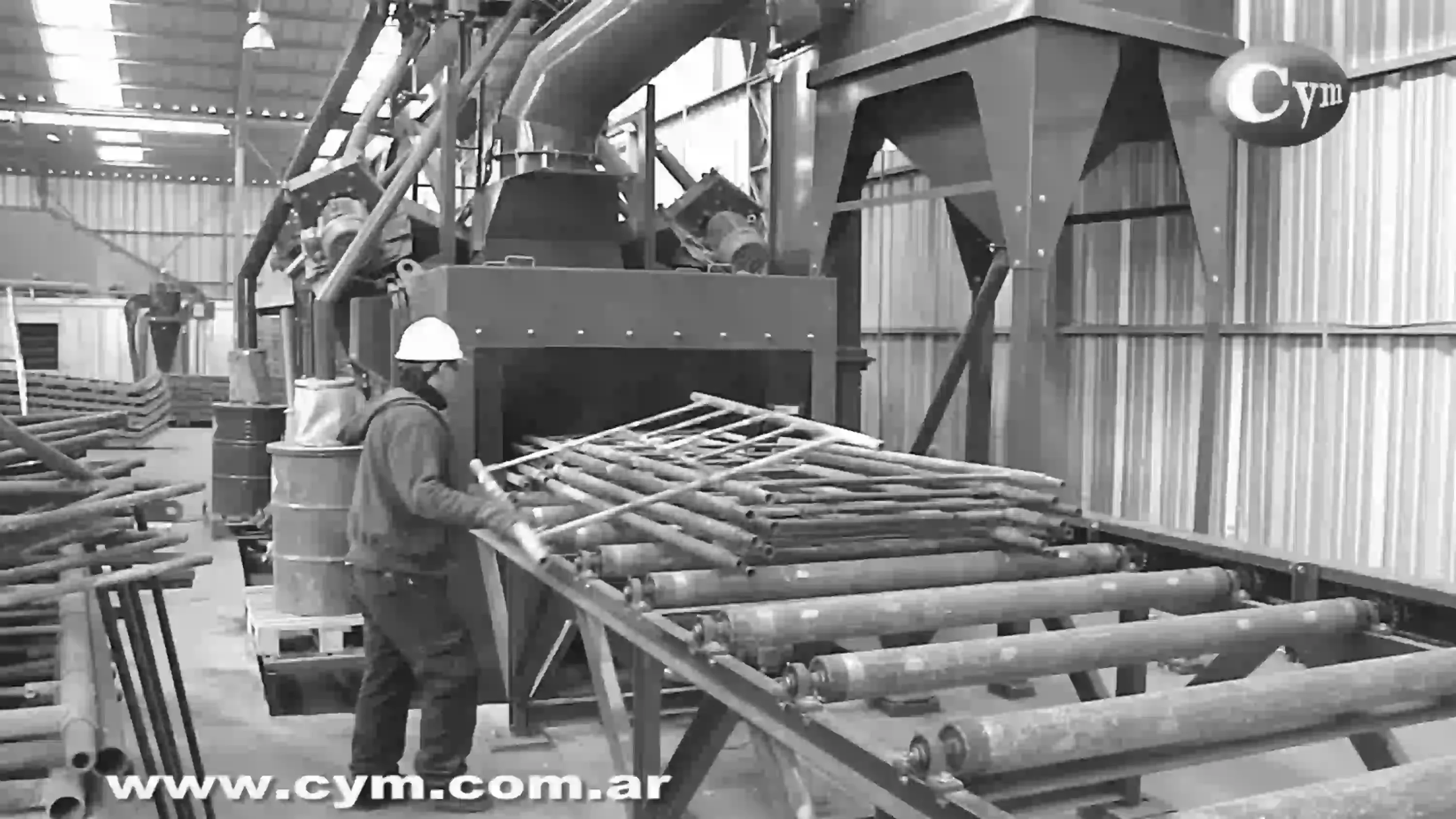

Part transport can be done with a parallel roller conveyor for horizontal pass, or with an overhead conveyor when integrating blasting with the painting line. This second configuration is the most efficient for rental companies: the scaffold enters dirty, is blasted, and continues in line toward the painting booth and drying oven without intermediate handling. The result is a continuous process that delivers the scaffold clean, painted and ready to return to the rental stock.

6. The return on investment for the rental company

Incorporating shot blasting into the reconditioning process transforms the operation of a scaffold rental company. Units return to the market with a presentation that sets them apart from the competition, justifying better rates and building customer loyalty. The process recovers scaffolds that seemed disposable due to their appearance, extending the fleet's service life. And being an automatic high-volume, low-operating-cost process, reconditioning stops being a manual bottleneck and becomes a competitive advantage.
