Cylinder and stationary tank blast machine
EST-TUN Line
Passage 1.5m × 1.5 mm (59" × 59") — 8 or 12 blast wheels — integrable

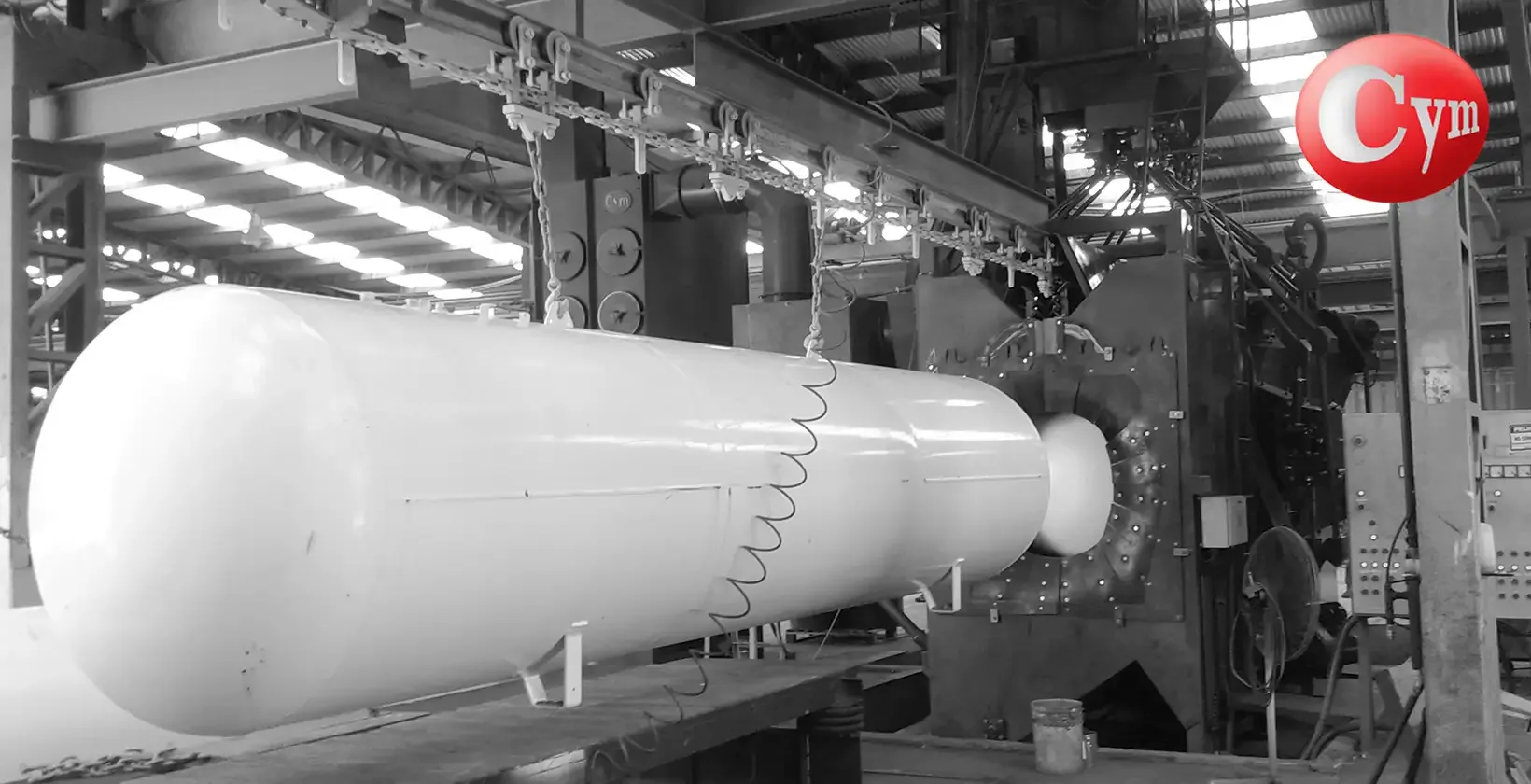

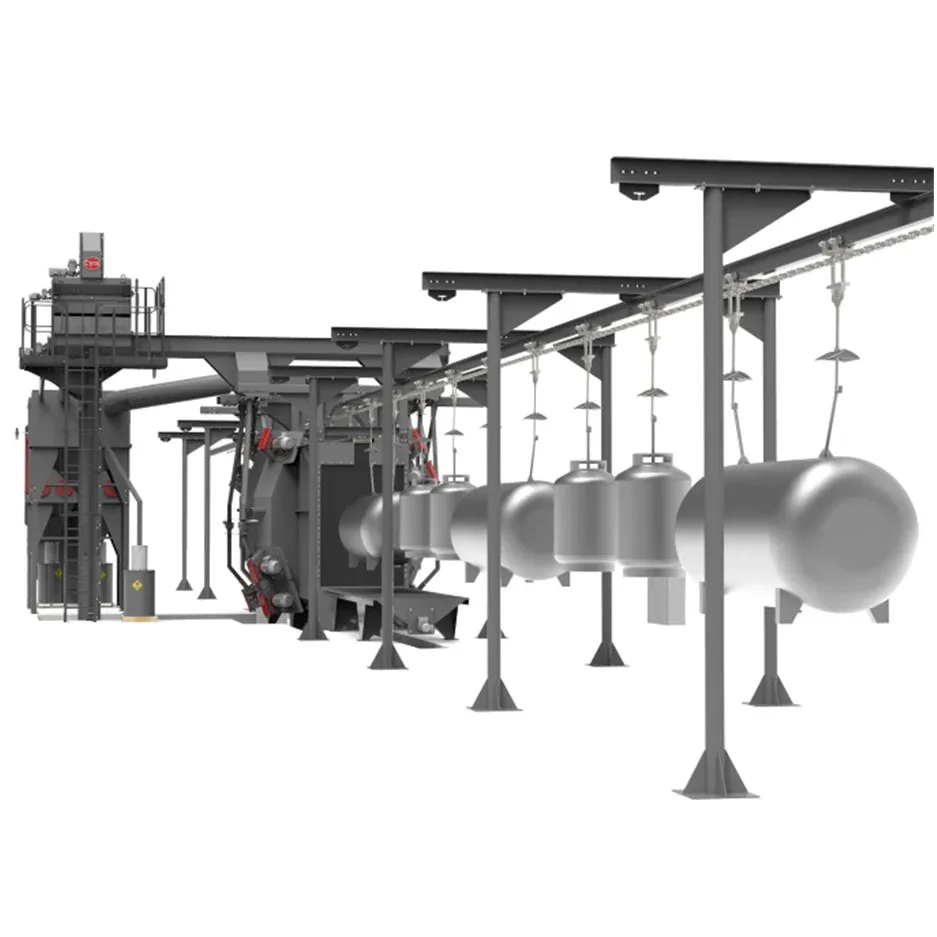

CYM Materiales EST-TUN 15×15 continuous pass-through shot blasting tunnel for large LPG stationary tanks and P150 high-pressure cylinders. Containers travel suspended on an overhead chain conveyor through the blast wheel tunnel, ensuring complete blasting of the exterior surface in a continuous process. The machine is configured with 8 blast wheels for new cylinders and tanks, or with 12 blast wheels when processing cylinders in recertification that present a greater amount of scale, paint and rust. CYM Materiales offers this solution as a turnkey plant integrated with a liquid paint booth, drying oven and complete overhead conveyor.
- Passage 1500 × 1500 mm (59" × 59") — suitable for large LPG stationary tanks and P150 cylinders.
- 8 blast wheels for new cylinders and tanks — 12 blast wheels for recertification with more scale and paint.
- Overhead chain conveyor — continuous automatic loading and unloading process.
- Total power and output variable per project dimensions and requirements.

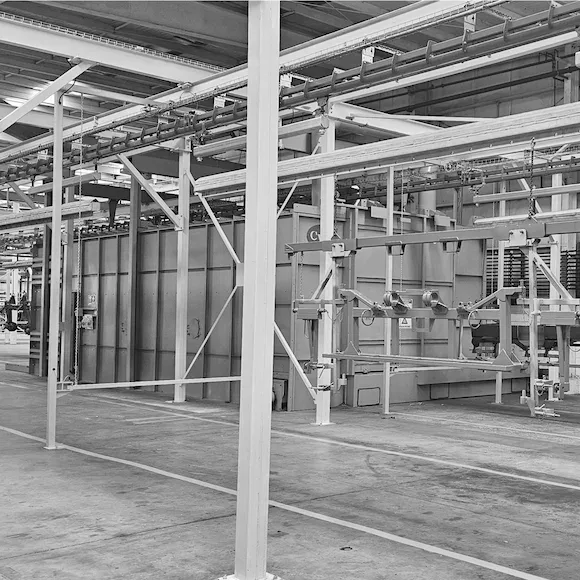

- Turnkey plant integrable with liquid paint booth and drying oven.
TECHNICAL SPECIFICATIONS
Models and capacities
| MODEL | NUMBER OF TURBINES | TURBINE POWER | MAXIMUM PART PASSAGE SECTION (*) | WORKING SPEED (**) |
|---|---|---|---|---|
| EST-TUN 15X15 - 8TR | 8 | 10 a 30 hp | 1500 mm X 1500 mm 60” x 60" | 0.3 a 1.5 m/min |
| EST-TUN 15X15 - 12 TR | 12 | 10 a 30 hp | 1500 mm X 1500 mm 60” x 60" | 0.3 a 1.5 m/min |
Notes: (*) The maximum part passage dimensions and production speed can be adapted to the customer’s specific requirements. (**) Equipment production speed varies according to the installed turbine power, the amount of mill scale, liquid or powder paint, oxides, and the required shot blasting finish grade.
