Shot blast turbine maintenance

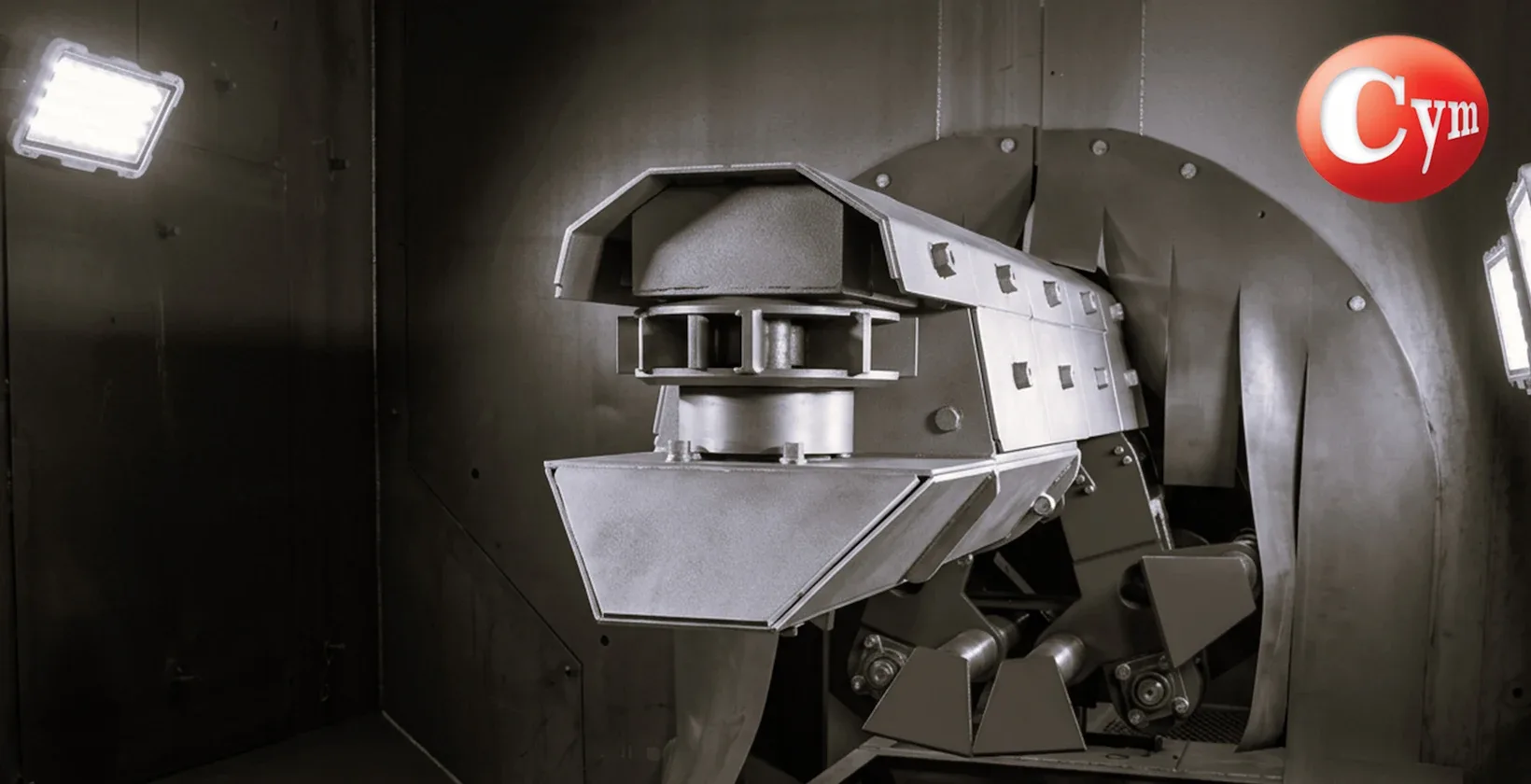

The centrifugal turbine is the heart of every automatic shot blast machine. It is the component that receives the abrasive, accelerates it and projects it onto the part in the directed stream that produces the blast. Its correct operation determines process productivity, finish quality and shot consumption. Incorrect or ignored wear is the most frequent cause of problems in shot blast machines.

The turbine is made up of the following main components: the wheel or rotor, which rotates at high speed driven by the motor; the blades, which are the wear parts that accelerate the abrasive; the control cage, which doses and directs the abrasive flow toward the blades; and the housing, which contains the assembly and directs the projection stream.

The concept of the hot spot is fundamental for turbine maintenance. The hot spot is the area of the housing that receives the greatest abrasive impact during the process. The control cage must be positioned so that the hot spot coincides with the area of greatest lining protection in the housing. A mispositioned hot spot causes accelerated and asymmetric wear of the housing and rotor.

The indicators that a turbine requires attention are: increased shot consumption per processed part, loss of surface finish uniformity, increased vibration or noise level, and visible reduction in blade and rotor thickness.

Blades are the highest wear parts and the first to be replaced. They must always be changed as a complete set — never individual blades — to maintain dynamic rotor balance. Replacing blades with different wear levels produces imbalance that accelerates bearing and rotor deterioration.
